TagBFP-DiB2-splitN1–125
(Plasmid #168973)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 168973 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

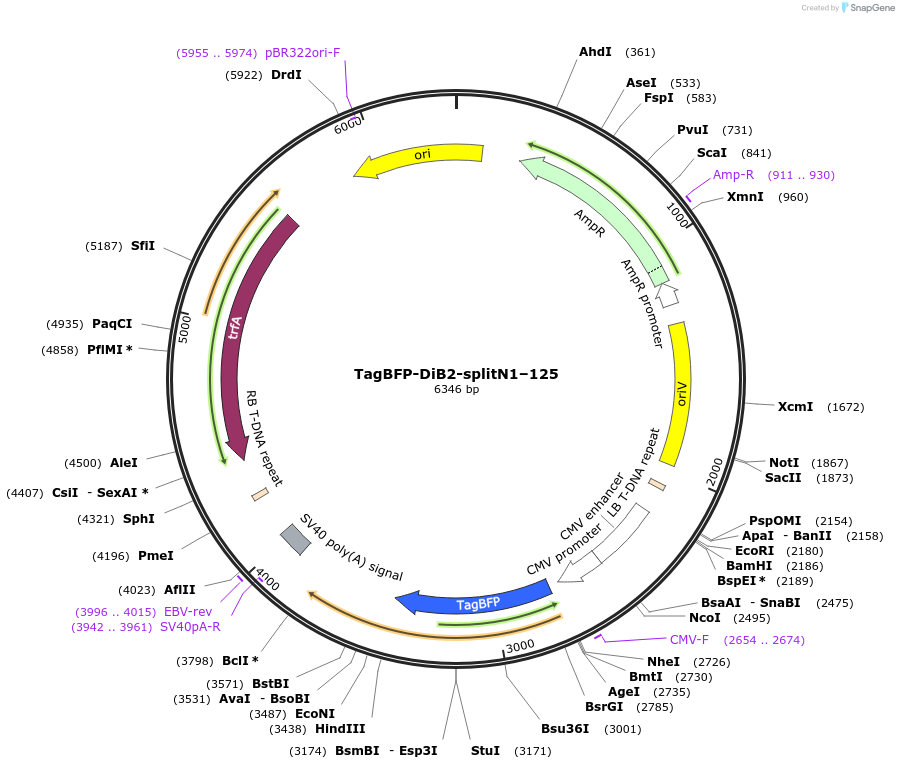

Backbone

  • Vector backbone
    pICH47732
  • Backbone size w/o insert (bp) 5296
  • Total vector size (bp) 6346
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TagBFP - DiB2-split N-frag
  • Species
    Synthetic
  • Insert Size (bp)
    1050
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (not destroyed)
  • 3′ cloning site BpiI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer CAAGTTAACAACAACAATTGCAT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    TagBFP-DiB2-splitN1–125 was a gift from Jens Meiler (Addgene plasmid # 168973 ; http://n2t.net/addgene:168973 ; RRID:Addgene_168973)

  • For your References section:

    DiB-splits: nature-guided design of a novel fluorescent labeling split system. Bozhanova NG, Gavrikov AS, Mishin AS, Meiler J. Sci Rep. 2020 Jul 6;10(1):11049. doi: 10.1038/s41598-020-67095-2. 10.1038/s41598-020-67095-2 PubMed 32632329
