pET11a-Z-N-DiB2
(Plasmid #168473)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 168473 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

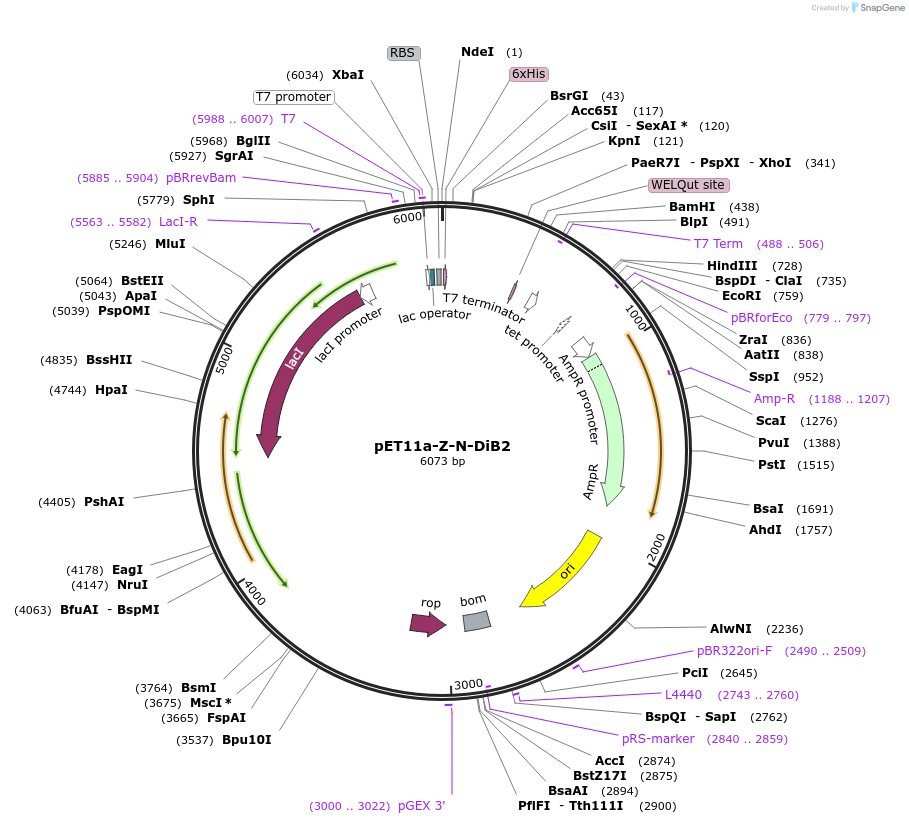

Backbone

  • Vector backbone
    pET11a
  • Backbone size w/o insert (bp) 5641
  • Total vector size (bp) 6076
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    N-fragment of DiB2 + Leucine Zipper
  • Species
    Synthetic
  • Insert Size (bp)
    435
  • Promoter T7
  • Tag / Fusion Protein
    • His-tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer CTAGTTATTGCTCAGCGGTG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET11a-Z-N-DiB2 was a gift from Jens Meiler (Addgene plasmid # 168473 ; http://n2t.net/addgene:168473 ; RRID:Addgene_168473)

  • For your References section:

    DiB-splits: nature-guided design of a novel fluorescent labeling split system. Bozhanova NG, Gavrikov AS, Mishin AS, Meiler J. Sci Rep. 2020 Jul 6;10(1):11049. doi: 10.1038/s41598-020-67095-2. 10.1038/s41598-020-67095-2 PubMed 32632329
