pLP-PIGA2 (pLP300)
(Plasmid
#168462)
-
Purpose(Empty Backbone) Big-IN Landing Pad plasmid encoding pEF1a-driven PuroR-P2A-hmPIGA-P2A-mScarlet expression cassette flanked by heterotypic LoxM/LoxP sites and BsaI homology arms cloning sites.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 168462 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonecustom
-
Backbone manufacturerMaurano and Boeke labs, The Center for Synthetic Regulatory Genomics, NYU Langone Health
-
Vector typeMammalian Expression, Mouse Targeting, Cre/Lox, Synthetic Biology ; Recombinase-mediated cassette exchange (RMCE) Landing Pad
- Promoter EF1a
-
Selectable markersPuromycin ; hmPIGA
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLP-PIGA2 (pLP300) was a gift from Matthew Maurano (Addgene plasmid # 168462 ; http://n2t.net/addgene:168462 ; RRID:Addgene_168462) -
For your References section:
A versatile platform for locus-scale genome rewriting and verification. Brosh R, Laurent JM, Ordonez R, Huang E, Hogan MS, Hitchcock AM, Mitchell LA, Pinglay S, Cadley JA, Luther RD, Truong DM, Boeke JD, Maurano MT. Proc Natl Acad Sci U S A. 2021 Mar 9;118(10). pii: 2023952118. doi: 10.1073/pnas.2023952118. 10.1073/pnas.2023952118 PubMed 33649239

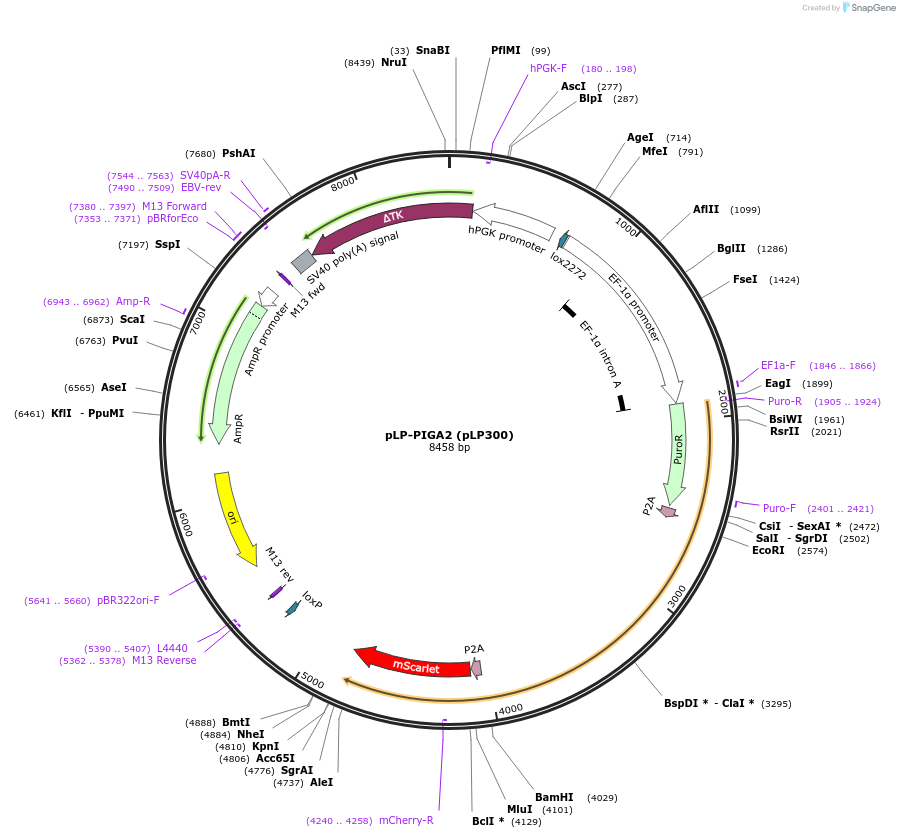

Map uploaded by the depositor.
