CSAC-Bmal1
(Plasmid #168296)

• Purpose: Expresses sgRNA in mammalian cells
• Depositing Lab: Han Kyoung Choe
• Publication: Kim et al Sci Rep. 2021 Jan 28;11(1):2575. doi: 10.1038/s41598-021-82287-0.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

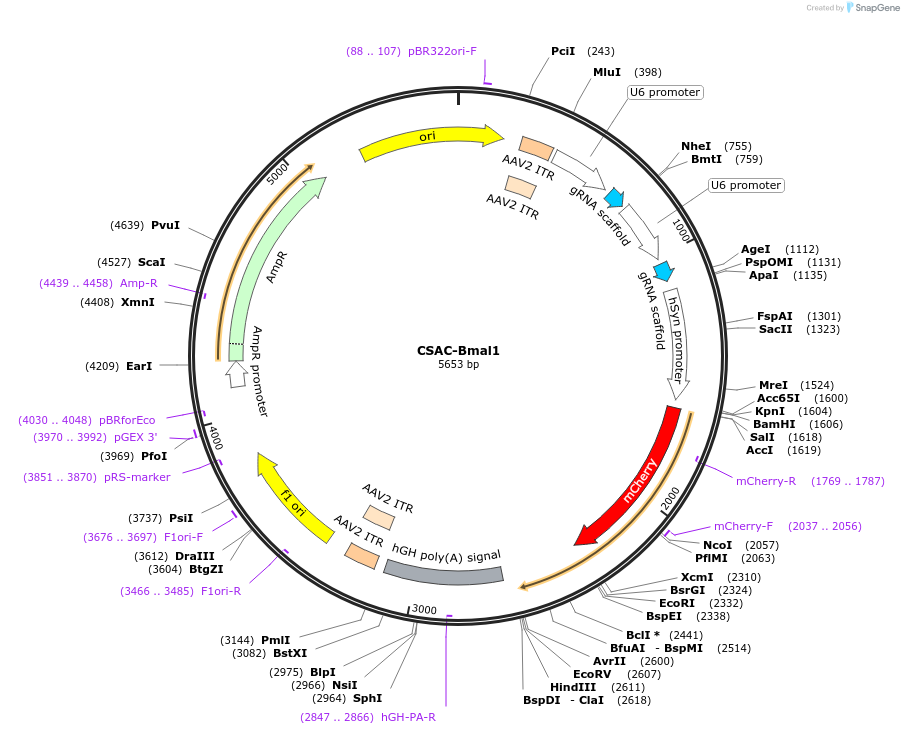

Backbone

• Vector backbone: pAAV-hU6-gRNA-hSyn-mCherry-KASH
• Backbone size w/o insert (bp): 5294
• Total vector size (bp): 5653
• Vector type: AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: hU6-sgBmal1-1-hU6-sgBmal1-3
• Alt name: CSAC-Bmal1
• gRNA/shRNA sequence: GGAACCGGAGAGTAGGTCGG, GCCTCTTTTCAATCTGACTG
• Species: M. musculus (mouse)
• Promoter: U6, hSyn
• Tag / Fusion Protein:
  • mCherry (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BsaI (not destroyed)
• 3′ cloning site: BsaI (not destroyed)
• 5′ sequencing primer: pUC_F ggagcctatggaaaaacgccag
• 3′ sequencing primer: hSyn_R gtcggtcgtcaggtaggcac

Resource Information

• Supplemental Documents:
  • paav-u6-bmal1-1-3-hsyn-mcherry-kash_bmal1-goldengate.gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry

Depositor Comments

When comparing to the depositor reference sequence, please note that the mutations K14E, N210D, and E249G in mCherry-KASH do not alter plasmid function.
