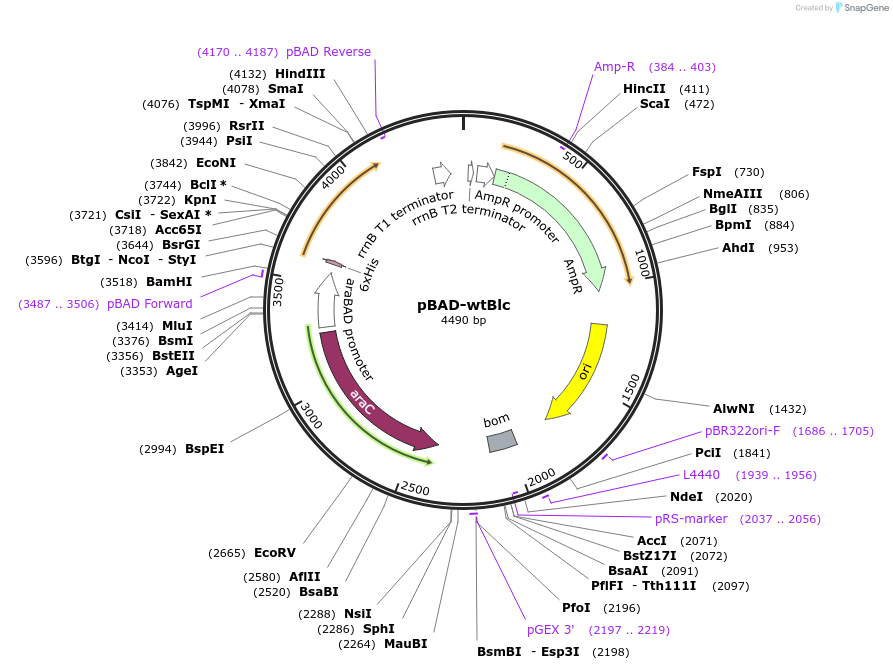

pBAD-wtBlc
(Plasmid #168255)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 168255 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBAD
  • Backbone size w/o insert (bp) 3958
  • Total vector size (bp) 4492
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Lipocalin Blc
  • Species
    E. coli
  • Insert Size (bp)
    534
  • GenBank ID
    NC_000913.3
  • Promoter araBAD
  • Tag / Fusion Protein
    • His-tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer ATGCCATAGCATTTTTATCC
  • 3′ sequencing primer GATTTAATCTGTATCAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD-wtBlc was a gift from Jens Meiler (Addgene plasmid # 168255 ; http://n2t.net/addgene:168255 ; RRID:Addgene_168255)

  • For your References section:

    Lipocalin Blc is a potential heme-binding protein. Bozhanova NG, Calcutt MW, Beavers WN, Brown BP, Skaar EP, Meiler J. FEBS Lett. 2021 Jan;595(2):206-219. doi: 10.1002/1873-3468.14001. Epub 2020 Dec 3. 10.1002/1873-3468.14001 PubMed 33210733
