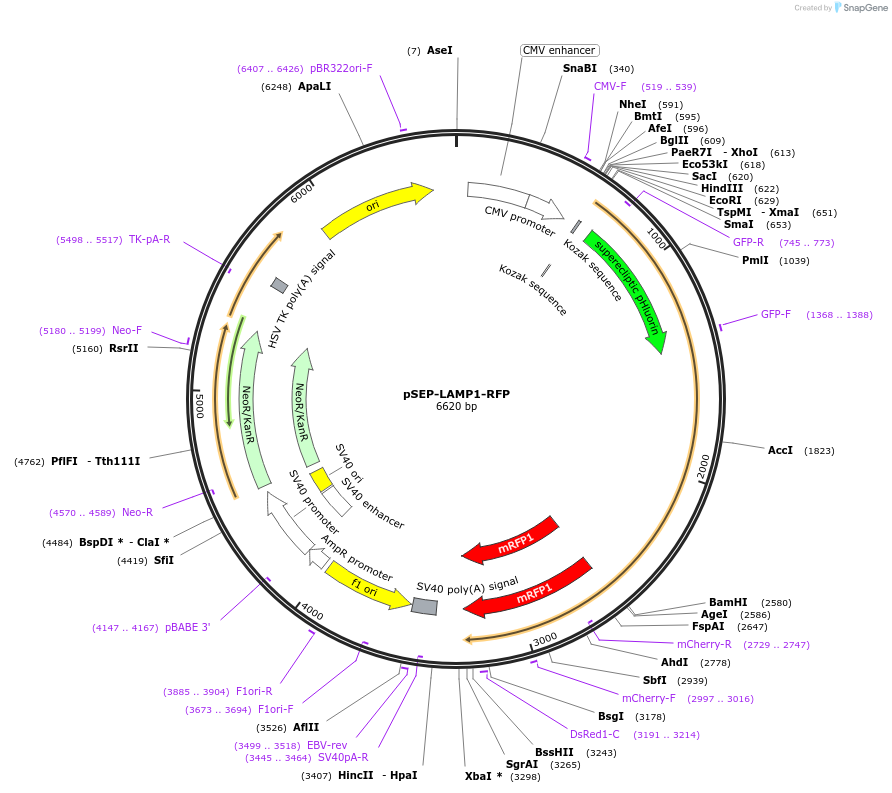

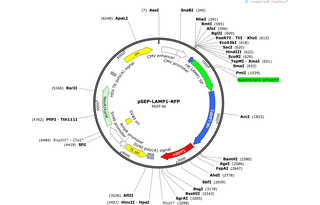

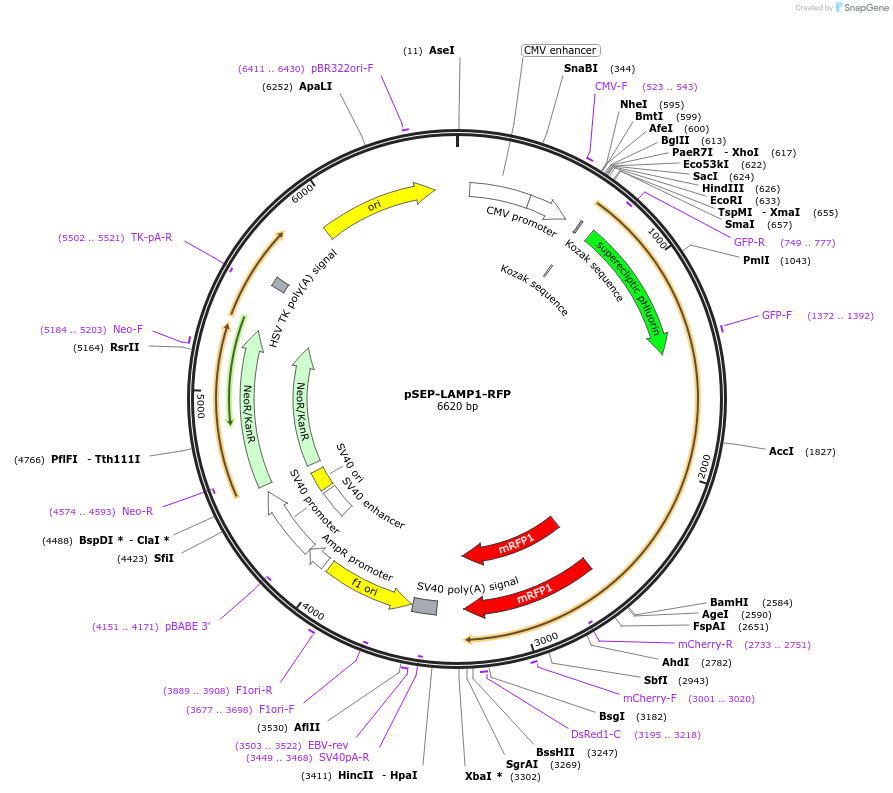

PurposeExpresses the chimeric construct SEP-LAMP1-RFP where superecliptic pHluorin (SEP) is fused to the luminal domain of LAMP1-RFP
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 167970 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepmRFP-N1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4682
- Total vector size (bp) 6620
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLAMP1
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)1938
-
MutationD50E
-
GenBank IDNM_012857.2
-
Entrez GeneLamp1 (a.k.a. LGP120)
- Promoter CMV
-
Tags
/ Fusion Proteins
- SEP (N terminal on insert)
- mRFP (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV_fwd
- 3′ sequencing primer SV40_rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSEP-LAMP1-RFP was a gift from Juan Bonifacino (Addgene plasmid # 167970 ; http://n2t.net/addgene:167970 ; RRID:Addgene_167970) -
For your References section:
BORC/kinesin-1 ensemble drives polarized transport of lysosomes into the axon. Farias GG, Guardia CM, De Pace R, Britt DJ, Bonifacino JS. Proc Natl Acad Sci U S A. 2017 Apr 4;114(14):E2955-E2964. doi: 10.1073/pnas.1616363114. Epub 2017 Mar 20. 10.1073/pnas.1616363114 PubMed 28320970
