pMeCP2miRFP670 pc3942
(Plasmid
#167568)
-
PurposeThe miRFP670-gene is ligated c-terminally to the rat meCP2-gene.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 167568 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

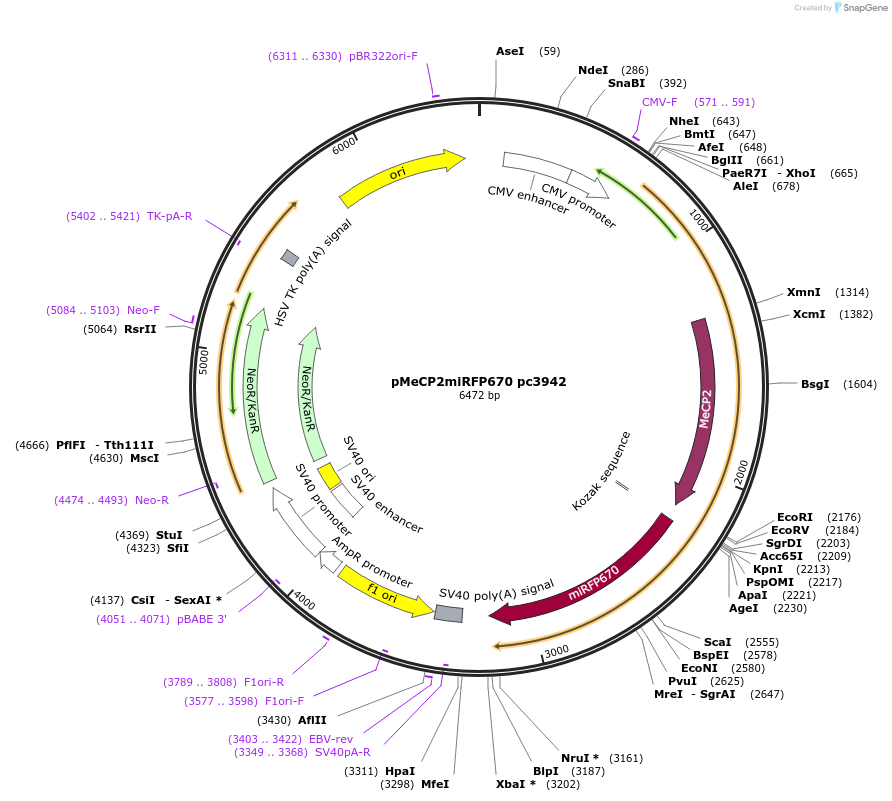

Backbone
-
Vector backbonepmiRFP670-N1
-
Backbone manufactureraddgene # 79987
- Backbone size w/o insert (bp) 4960
- Total vector size (bp) 6472
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMeCp2
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)1476
-
Entrez GeneMecp2 (a.k.a. MECP2_e1)
- Promoter CMV
-
Tag
/ Fusion Protein
- GFP
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site MfeI (not destroyed)
- 5′ sequencing primer gtcagatccgctagc
- 3′ sequencing primer caactagaatgcagtg (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMeCP2miRFP670 pc3942 was a gift from Cristina Cardoso (Addgene plasmid # 167568 ; http://n2t.net/addgene:167568 ; RRID:Addgene_167568) -
For your References section:
Processive DNA synthesis is associated with localized decompaction of constitutive heterochromatin at the sites of DNA replication and repair. Chagin VO, Reinhart B, Becker A, Mortusewicz O, Jost KL, Rapp A, Leonhardt H, Cardoso MC. Nucleus. 2019 Dec;10(1):231-253. doi: 10.1080/19491034.2019.1688932. 10.1080/19491034.2019.1688932 PubMed 31744372
