His-TEV-SNAP-PRC1
(Plasmid #167541)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 167541 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

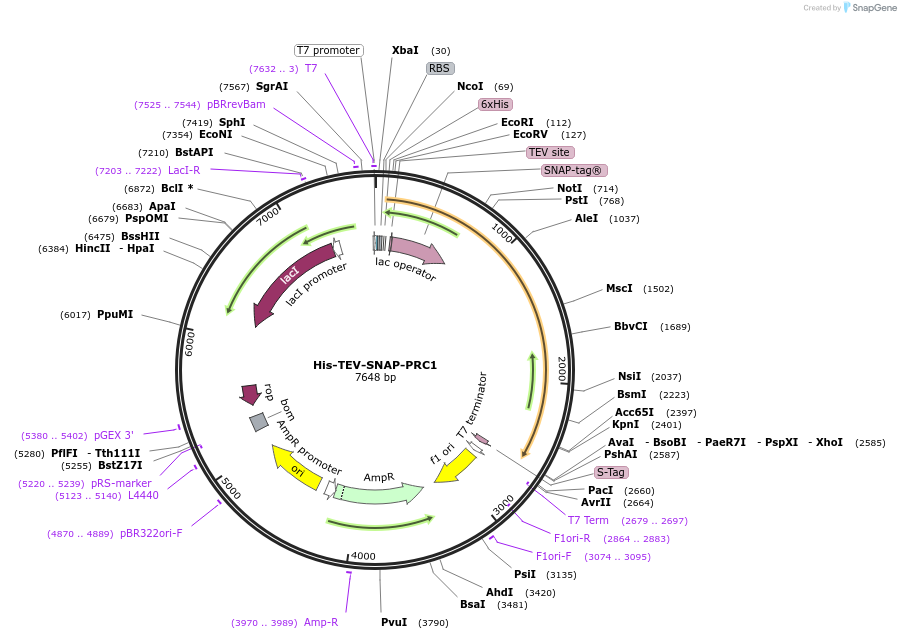

Backbone

  • Vector backbone
    pETDuet-1
  • Backbone manufacturer
    EMD Biosciences
  • Backbone size w/o insert (bp) 5420
  • Total vector size (bp) 7651
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    IPTG inducible.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PRC1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1863
  • GenBank ID
    NP_003972
  • Entrez Gene
    PRC1 (a.k.a. ASE1, MAP65)
  • Promoter T7
  • Tags / Fusion Proteins
    • His6 tag (N terminal on backbone)
    • SNAP tag (N terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer GCTAGTTATTGCTCAGCGG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    His-TEV-SNAP-PRC1 was a gift from Tarun Kapoor (Addgene plasmid # 167541 ; http://n2t.net/addgene:167541 ; RRID:Addgene_167541)

  • For your References section:

    Marking and measuring single microtubules by PRC1 and kinesin-4. Subramanian R, Ti SC, Tan L, Darst SA, Kapoor TM. Cell. 2013 Jul 18;154(2):377-90. doi: 10.1016/j.cell.2013.06.021. 10.1016/j.cell.2013.06.021 PubMed 23870126
