Human_TFAM_HMGB_ctail_pET28
(Plasmid #167330)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 167330 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

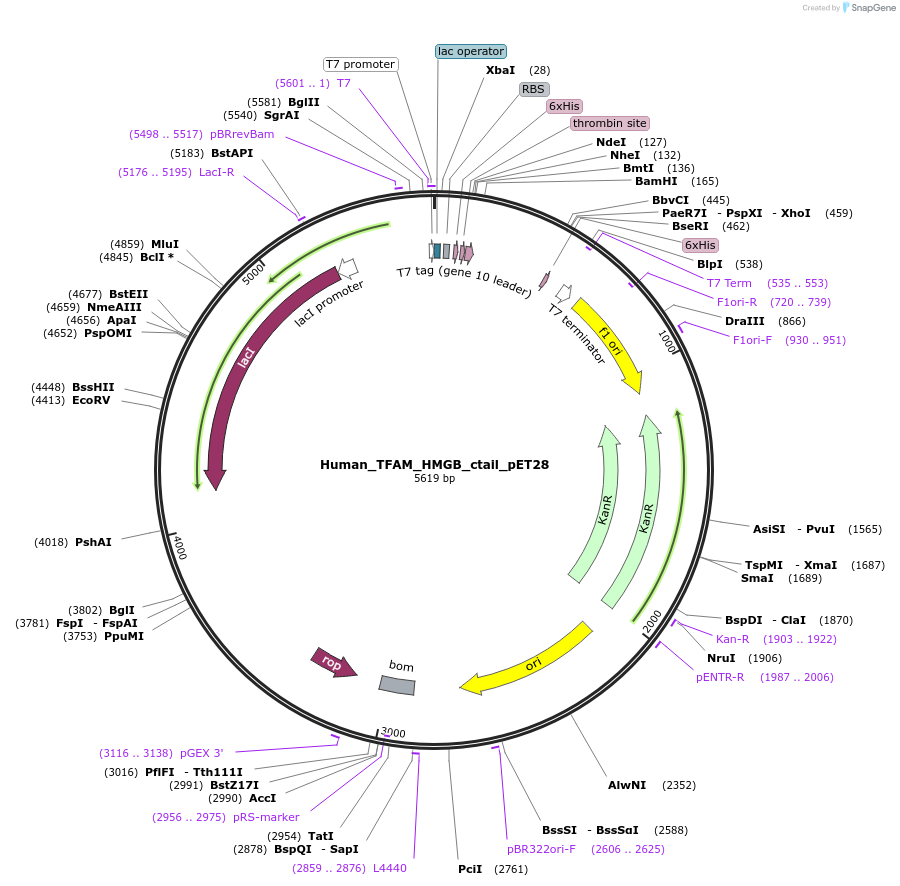

Backbone

  • Vector backbone
    pET28a
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 4927
  • Total vector size (bp) 5620
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TFAM
  • Alt name
    Mitochondrial transcription factor A
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    288
  • Mutation
    Truncation mutant containing HMGB and C-tail domains (153-246).
  • GenBank ID
    NM_003201.3
  • Entrez Gene
    TFAM (a.k.a. MTDPS15, MTTF1, MTTFA, TCF6, TCF6L1, TCF6L2, TCF6L3)
  • Promoter T7
  • Tag / Fusion Protein
    • 6XHis (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site XhoI (unknown if destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 Terminal
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/10.1101/822858v4 for BioRxiv preprint

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Human_TFAM_HMGB_ctail_pET28 was a gift from Tom Misteli (Addgene plasmid # 167330 ; http://n2t.net/addgene:167330 ; RRID:Addgene_167330)

  • For your References section:

    Self-assembly of multi-component mitochondrial nucleoids via phase separation. Feric M, Demarest TG, Tian J, Croteau DL, Bohr VA, Misteli T. EMBO J. 2021 Mar 15;40(6):e107165. doi: 10.15252/embj.2020107165. Epub 2021 Feb 23. 10.15252/embj.2020107165 PubMed 33619770
