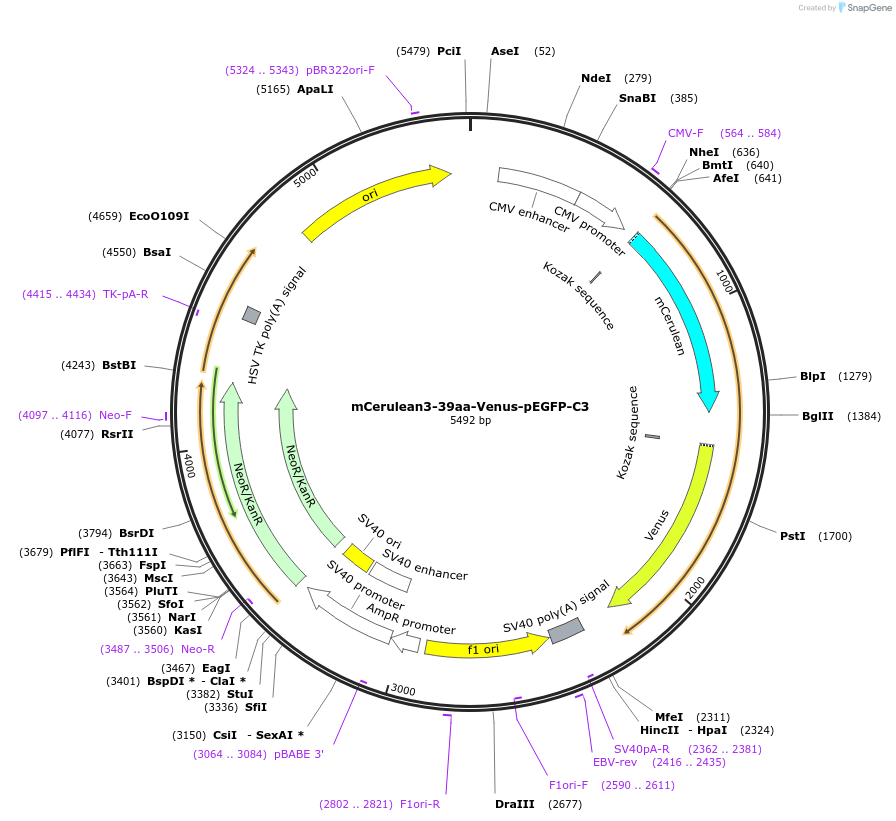

mCerulean3-39aa-Venus-pEGFP-C3
(Plasmid #166755)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 166755 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-C3
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mCerulean3-39aa-Venus
  • Alt name
    mCerulean3 and Venus fluorophores linked together
  • Species
    Synthetic
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer TGACGCAAATGGGCGGTAGG
  • 3′ sequencing primer TCGCCCTTTGACGTTGGAGTCCAC
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    mCerulean3 received from Mark Rizzo PMID: 21479270 and cloned into this plasmid
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Donor:acceptor linker construct with 39 amino acid flexible linker joining the mCerulean3 to Venus.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mCerulean3-39aa-Venus-pEGFP-C3 was a gift from David Andrews (Addgene plasmid # 166755 ; http://n2t.net/addgene:166755 ; RRID:Addgene_166755)

  • For your References section:

    Efficacy and specificity of inhibitors of BCL-2 family protein interactions assessed by affinity measurements in live cells. Osterlund EJ, Hirmiz N, Pemberton JM, Nougarede A, Liu Q, Leber B, Fang Q, Andrews DW. Sci Adv. 2022 Apr 22;8(16):eabm7375. doi: 10.1126/sciadv.abm7375. Epub 2022 Apr 20. 10.1126/sciadv.abm7375 PubMed 35442739
