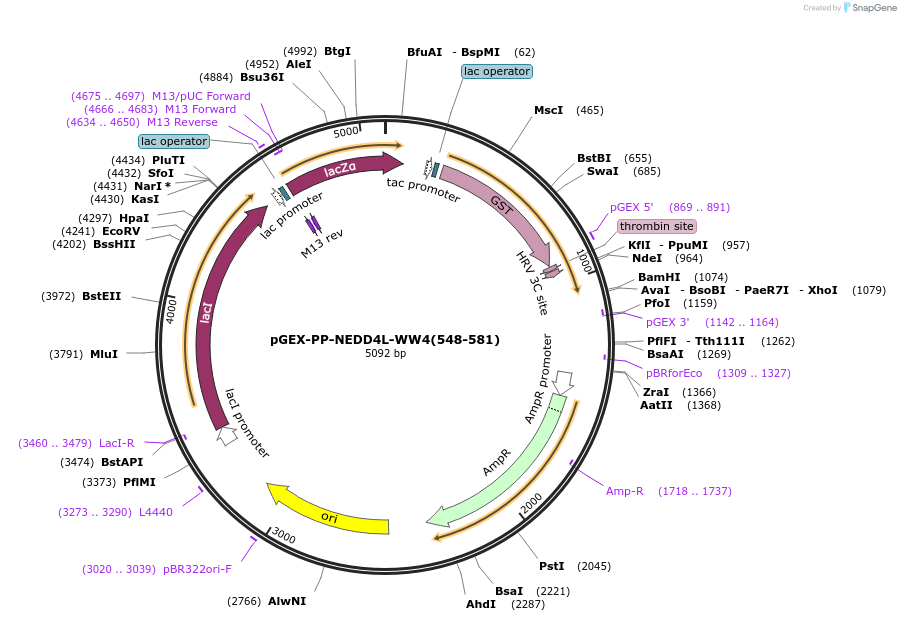

pGEX-PP-NEDD4L-WW4(548-581)
(Plasmid #166704)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 166704 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pGEX-PP-GFP
  • Backbone size w/o insert (bp) 5797
  • Total vector size (bp) 5902
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    NEDD4L WW4 domain
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    105
  • Promoter tac promoter
  • Tags / Fusion Proteins
    • GST (N terminal on backbone)
    • Thrombin site (N terminal on backbone)
    • HRV 3C site (N terminal on backbone)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer GGGCTGGCAAGCCACGTTTGGTG
  • 3′ sequencing primer CCGGGAGCTGCATGTGTCAGAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGEX-PP-NEDD4L-WW4(548-581) was a gift from Wesley Sundquist (Addgene plasmid # 166704 ; http://n2t.net/addgene:166704 ; RRID:Addgene_166704)

  • For your References section:

    Interactions between AMOT PPxY Motifs and NEDD4L WW Domains Function in HIV-1 Release. Rheinemann L, Thompson T, Mercenne G, Paine EL, Peterson FC, Volkman BF, Alam SL, Alian A, Sundquist WI. J Biol Chem. 2021 Jul 17:100975. doi: 10.1016/j.jbc.2021.100975. 10.1016/j.jbc.2021.100975 PubMed 34284061
