pATP416-pluxO5-ptetO7-crtYBI
(Plasmid
#165975)
-
PurposeExpresses carotenoid biosynthesis gene in response to homoserine lactone and doxycycline in yeast expressing LuxTA and rtTA
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 165975 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

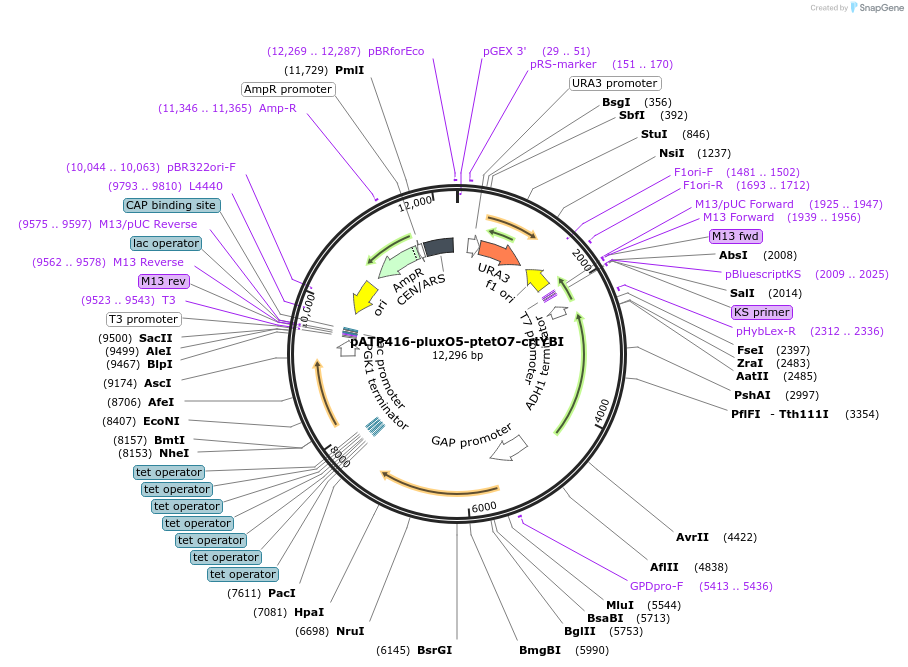

Backbone
-
Vector backbonepRS416
- Total vector size (bp) 12296
-
Vector typeYeast Expression, Synthetic Biology
-
Selectable markersURA3
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert nameXanthophyllomyces dendrorhous phytoene-beta carotene synthase (crtYB) mRNA, complete cds
-
Alt namecrtYB
-
SpeciesXanthophyllomyces dendrorhous
-
Insert Size (bp)2022
-
MutationC66A, C1359T
-
GenBank IDAY177204.1
- Promoter Synthetic promoter (pluxO5)
Cloning Information for Gene/Insert 1
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7, M13/pUC Forward
- 3′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameXanthophyllomyces dendrorhous phytoene desaturase mRNA, complete cds
-
Alt nameCrtI
-
SpeciesXanthophyllomyces dendrorhous
-
Insert Size (bp)1749
-
MutationC1281A, G1698A
-
GenBank IDAY177424.1
- Promoter pTDH3
Cloning Information for Gene/Insert 2
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer n/a
- 3′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 3
-
Gene/Insert nameBTS1
-
Alt nameSaccharomyces cerevisiae S288C farnesyltranstransferase (BTS1)
-
SpeciesS. cerevisiae (budding yeast)
-
Insert Size (bp)1008
-
GenBank IDNM_001183883.1
-
Entrez GeneBTS1 (a.k.a. YPL069C)
- Promoter Synthetic promoter (ptetO7)
Cloning Information for Gene/Insert 3
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer n/a
- 3′ sequencing primer M13/pUC Reverse (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byTet systems (pTRE-Tight)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
A portion of this plasmid (the operator region of ptetO7) was derived from a plasmid (pTRE-Tight, Tet systems).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pATP416-pluxO5-ptetO7-crtYBI was a gift from Jun Ishii (Addgene plasmid # 165975 ; http://n2t.net/addgene:165975 ; RRID:Addgene_165975) -
For your References section:
Robust and flexible platform for directed evolution of yeast genetic switches. Tominaga M, Nozaki K, Umeno D, Ishii J, Kondo A. Nat Commun. 2021 Mar 23;12(1):1846. doi: 10.1038/s41467-021-22134-y. 10.1038/s41467-021-22134-y PubMed 33758180
