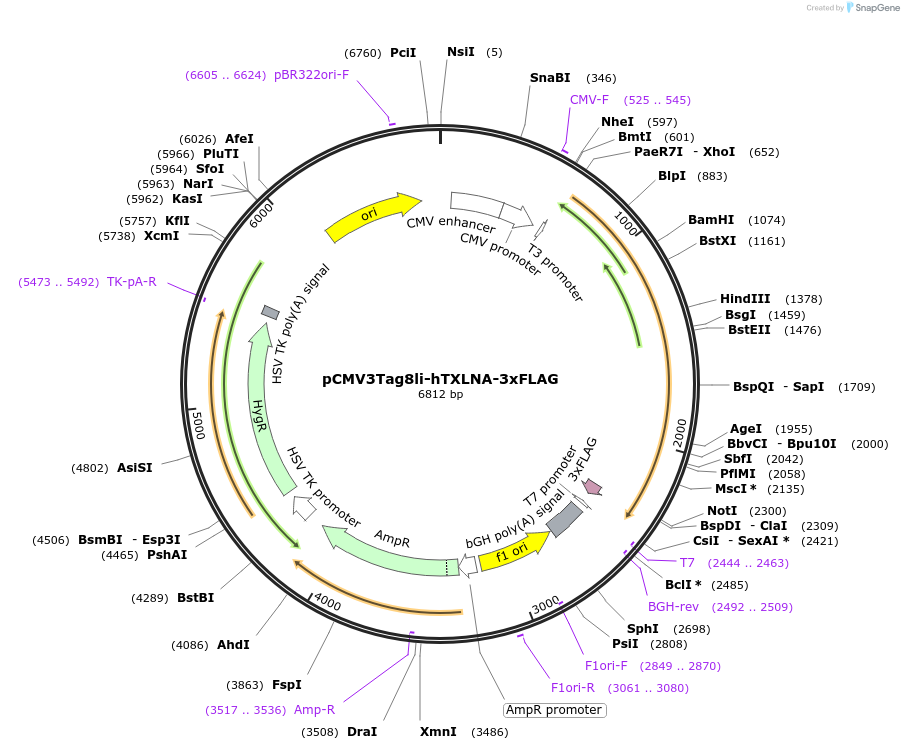

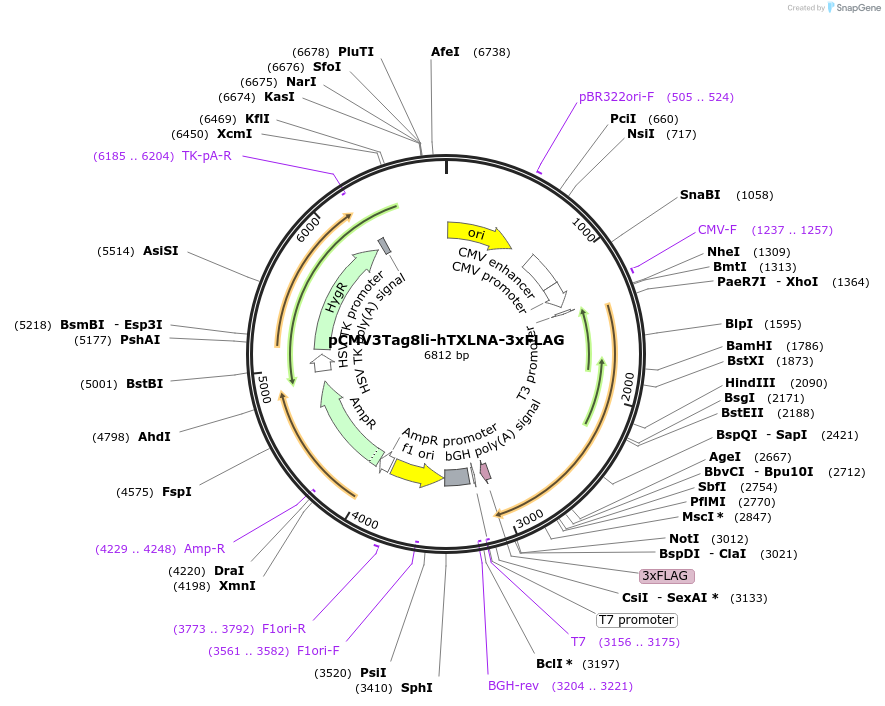

pCMV3Tag8li-hTXLNA-3xFLAG
(Plasmid
#165471)
-
PurposeHuman TXLNA mammalian expression vector with 3 C-terminal FLAG tags.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 165471 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCMV-3Tag-8 modified MCS
-
Backbone manufacturerStratagene /Agilent
- Backbone size w/o insert (bp) 5200
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametaxilin alpha
-
Alt nameTXLNA, IL14, TXLN
-
Alt nameBC080578
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1638
-
Entrez GeneTXLNA (a.k.a. IL14, TXLN)
- Promoter CMV
-
Tag
/ Fusion Protein
- 3xFLAG (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer CMV, (T3)
- 3′ sequencing primer T7, BGH polyA reverse (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byOpen Biosystems clone: Human MGC Verified FL cDNA (IRAU) Clone Id: 6598234
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Backbone contains new MCS (multiple cloning site). CDS without stop codon was inserted with XhoI-NotI and it expresses in frame with 3xFLAG epitope tag. Construct insertion = Xhoi-ACC-[TXLNA CDS 1638 bp, no stop]-Noti-A-Clai-GTCGAG-3xFLAG-STOP
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCMV3Tag8li-hTXLNA-3xFLAG was a gift from Martin Dorf (Addgene plasmid # 165471 ; http://n2t.net/addgene:165471 ; RRID:Addgene_165471) -
For your References section:
Mapping a dynamic innate immunity protein interaction network regulating type I interferon production. Li S, Wang L, Berman M, Kong YY, Dorf ME. Immunity. 2011 Sep 23;35(3):426-40. Epub 2011 Sep 8. 10.1016/j.immuni.2011.06.014 PubMed 21903422
