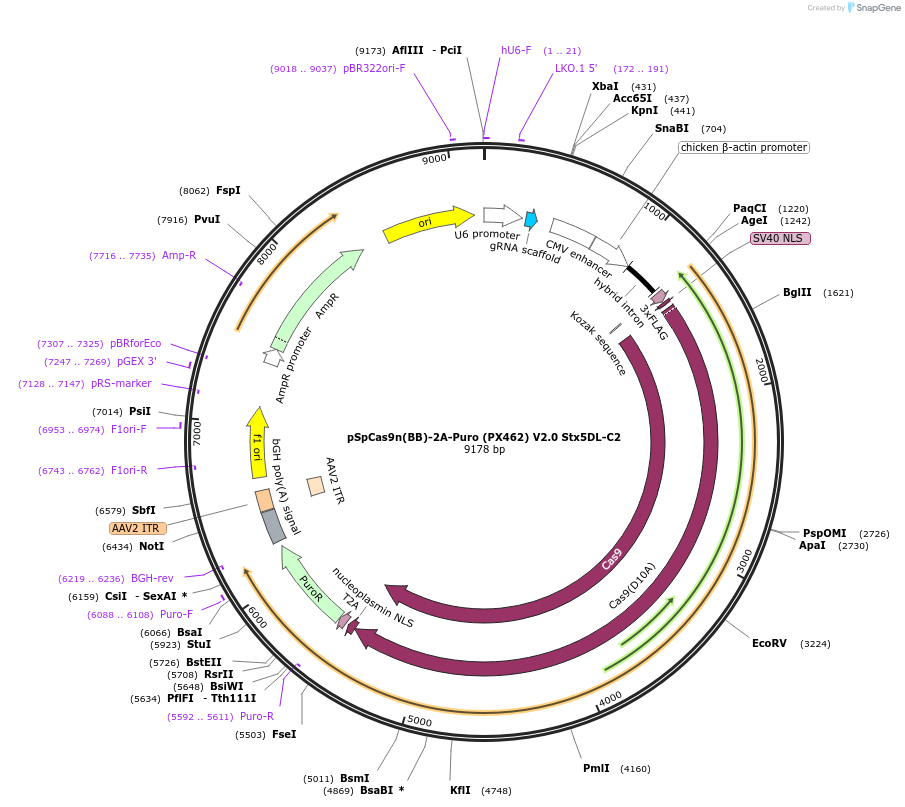

pSpCas9n(BB)-2A-Puro (PX462) V2.0 Stx5DL-C2
(Plasmid #165086)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 165086 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    PX462
  • Total vector size (bp) 9178
  • Vector type
    Mammalian Expression, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hSpCas9n-2A-Puro
  • Alt name
    SpCas9n-2A-Puro V2.0
  • Alt name
    Cas9n
  • Alt name
    PX462 V2.0
  • gRNA/shRNA sequence
    TGATC CCGCG GAAAC GCTAC
  • Species
    Synthetic
  • Promoter CMV
  • Tags / Fusion Proteins
    • 3XFLAG (N terminal on insert)
    • 2A-Puro (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (unknown if destroyed)
  • 3′ cloning site BbsI (unknown if destroyed)
  • 5′ sequencing primer U6-fwd
  • 3′ sequencing primer U6-rev
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSpCas9n(BB)-2A-Puro (PX462) V2.0 Stx5DL-C2 was a gift from Geert van den Bogaart (Addgene plasmid # 165086 ; http://n2t.net/addgene:165086 ; RRID:Addgene_165086)

  • For your References section:

    Congenital disorder of glycosylation caused by starting site-specific variant in syntaxin-5. Linders PTA, Gerretsen ECF, Ashikov A, Vals MA, de Boer R, Revelo NH, Arts R, Baerenfaenger M, Zijlstra F, Huijben K, Raymond K, Muru K, Fjodorova O, Pajusalu S, Ounap K, Ter Beest M, Lefeber D, van den Bogaart G. Nat Commun. 2021 Oct 28;12(1):6227. doi: 10.1038/s41467-021-26534-y. 10.1038/s41467-021-26534-y PubMed 34711829
