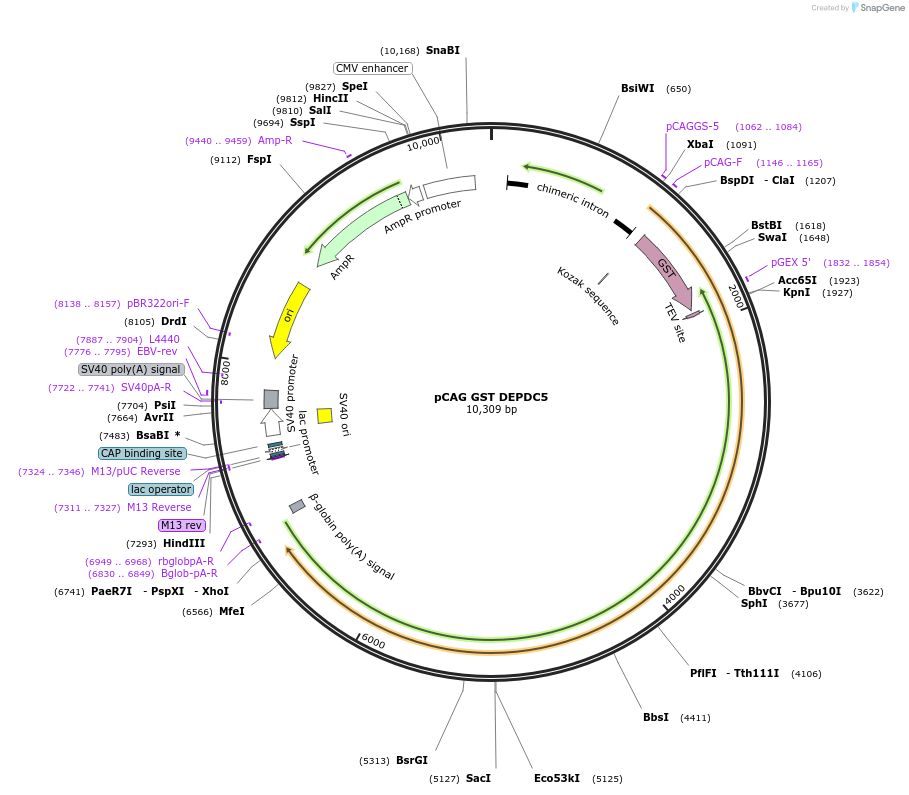

pCAG GST DEPDC5
(Plasmid #164983)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164983 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCAG GST
  • Modifications to backbone
    TEV cleavage sequence was added between GST and DEPDC5
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DEPDC5
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    4812
  • Entrez Gene
    DEPDC5 (a.k.a. DEP.5, FFEVF, FFEVF1)
  • Promoter CAG
  • Tag / Fusion Protein
    • GST (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer pCAG-F: CTTCTTCTTTTTCCTACAGCTCCTGGGC
  • 3′ sequencing primer pCAG-R: CAGTGGTATTTGTGAGCCAGGGCATT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG GST DEPDC5 was a gift from Roberto Zoncu (Addgene plasmid # 164983 ; http://n2t.net/addgene:164983 ; RRID:Addgene_164983)

  • For your References section:

    Structural mechanism of a Rag GTPase activation checkpoint by the lysosomal folliculin complex. Lawrence RE, Fromm SA, Fu Y, Yokom AL, Kim DJ, Thelen AM, Young LN, Lim CY, Samelson AJ, Hurley JH, Zoncu R. Science. 2019 Nov 22;366(6468):971-977. doi: 10.1126/science.aax0364. Epub 2019 Oct 31. 10.1126/science.aax0364 PubMed 31672913
