pLJM1 FLCN (R164A) FLAG GFP
(Plasmid #164980)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164980 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

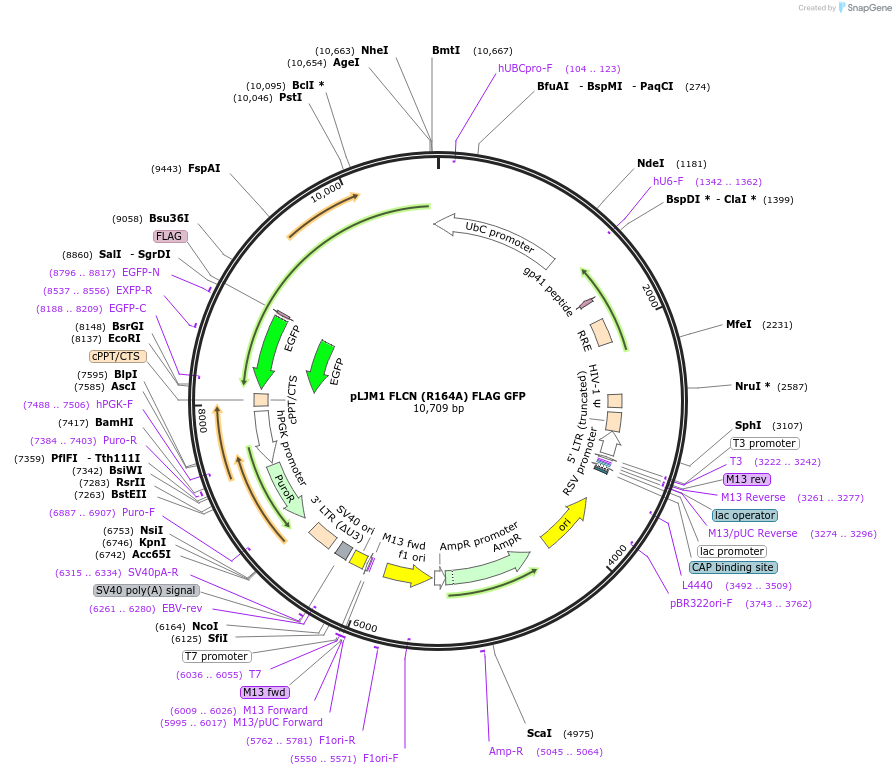

Backbone

  • Vector backbone
    PLJM1
  • Modifications to backbone
    CMV promoter was switched to UBC promoter
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    FLCN
  • Alt name
    Folliculin
  • Species
    H. sapiens (human)
  • Mutation
    R164A
  • Entrez Gene
    FLCN (a.k.a. BHD, DENND8B, FLCL)
  • Promoter UBC
  • Tag / Fusion Protein
    • 1xFLAG-GFP (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer hUBCpro-F: TGAAGCTCCGGTTTTGAACT
  • 3′ sequencing primer GACGTGAAGAATGTGCGAGA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLJM1 FLCN (R164A) FLAG GFP was a gift from Roberto Zoncu (Addgene plasmid # 164980 ; http://n2t.net/addgene:164980 ; RRID:Addgene_164980)

  • For your References section:

    Structural mechanism of a Rag GTPase activation checkpoint by the lysosomal folliculin complex. Lawrence RE, Fromm SA, Fu Y, Yokom AL, Kim DJ, Thelen AM, Young LN, Lim CY, Samelson AJ, Hurley JH, Zoncu R. Science. 2019 Nov 22;366(6468):971-977. doi: 10.1126/science.aax0364. Epub 2019 Oct 31. 10.1126/science.aax0364 PubMed 31672913
