Addgene

SBE4-Luc
(Plasmid #16495)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 16495 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBV-Luc
  • Backbone manufacturer
    Vogelstein Lab
  • Backbone size w/o insert (bp) 4867
  • Vector type
    Mammalian Expression, Luciferase

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Smad binding element
  • Alt name
    SBE x 4
  • Tag / Fusion Protein
    • luciferase (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SmaI (destroyed during cloning)
  • 3′ cloning site SmaI (destroyed during cloning)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer LucNrev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

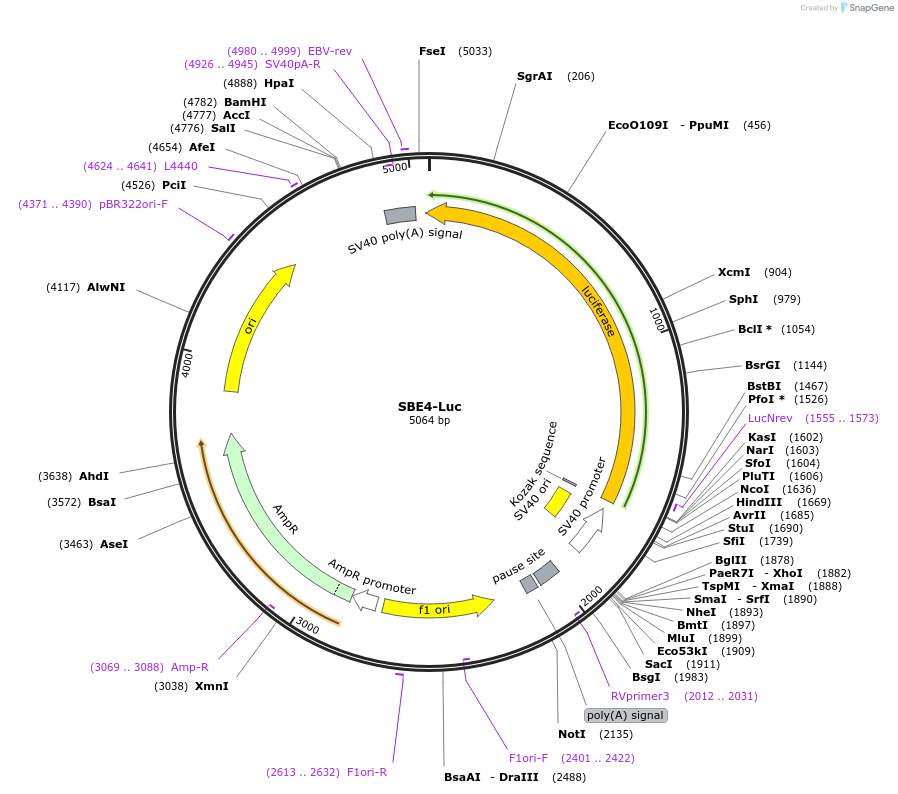

Four copies of the Smad binding site (GTCTAGAC) are cloned into pBV-Luc.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    SBE4-Luc was a gift from Bert Vogelstein (Addgene plasmid # 16495 ; http://n2t.net/addgene:16495 ; RRID:Addgene_16495)
  • For your References section:

    Human Smad3 and Smad4 are sequence-specific transcription activators. Zawel L, Dai JL, Buckhaults P, Zhou S, Kinzler KW, Vogelstein B, Kern SE. Mol Cell. 1998 Mar . 1(4):611-7. 10.1016/S1097-2765(00)80061-1 PubMed 9660945
