pAS007
(Plasmid
#164868)
-
PurposeThis plasmid can be used to study DNA looping in vivo. pAS007 contains the phiKO2 cB operator sequences but can be modified to insert any DNA operators of interest.
-
Depositing Lab
-

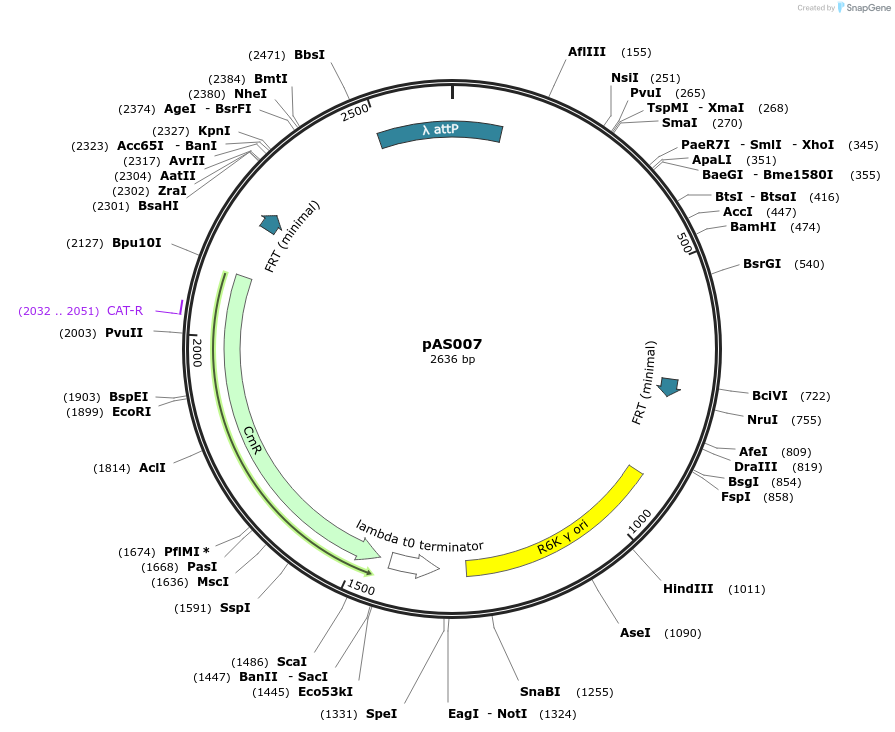

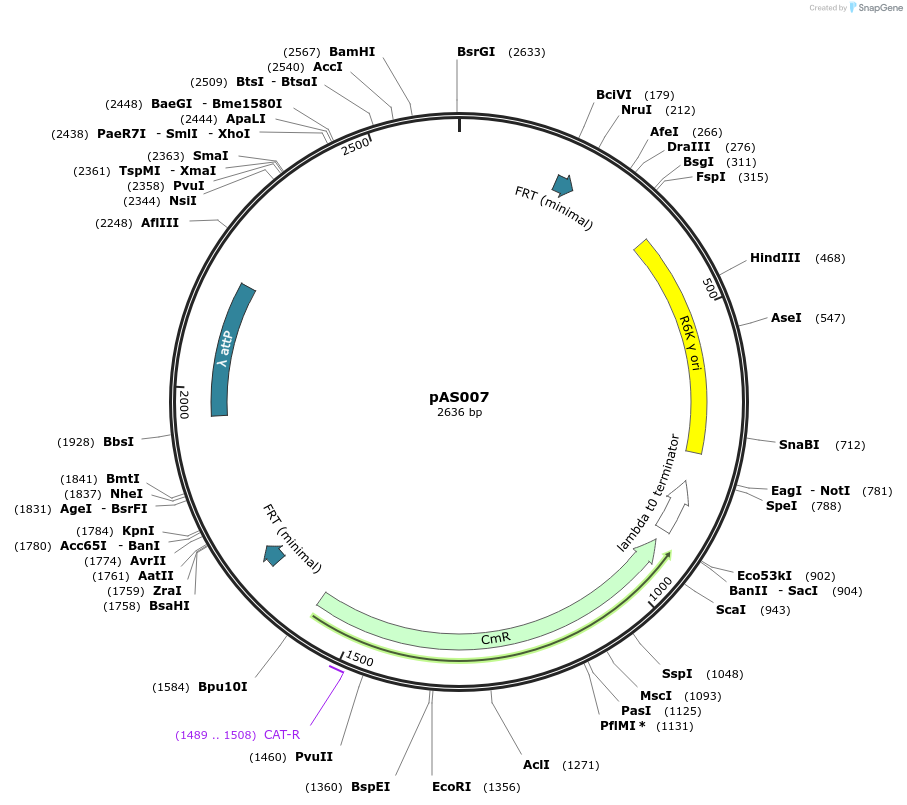

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 164868 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneCRIM plasmid
-
Backbone manufacturerHaldimann and Wanner
- Backbone size w/o insert (bp) 2520
- Total vector size (bp) 2636
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Pir1
-
Growth instructionsMust be maintained in a pir+ strain.
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namephiKO2 operators
-
SpeciesSynthetic
-
Insert Size (bp)116
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
pAS007 is a version of the pLOM2-500 loop-o-meter vector, and contains the phiKO2 cB operator sequences. pAS007 can be used as a positive control for DNA looping, in combination with pID1072, the expression plasmid for phiKO2 cB repressor.
DNA binding sites for any candidate looping proteins of interest can be used to replace the phiKO2 operators in pAS007.
pAS007 is designed to be integrated into a chromosomal lambda attachment site, using the lambda integrase helper plasmid (Addgene # 66076).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAS007 was a gift from Keith Shearwin (Addgene plasmid # 164868 ; http://n2t.net/addgene:164868 ; RRID:Addgene_164868) -
For your References section:
The loopometer: a quantitative in vivo assay for DNA-looping proteins. Hao N, Sullivan AE, Shearwin KE, Dodd IB. Nucleic Acids Res. 2021 Jan 28. pii: 6123373. doi: 10.1093/nar/gkaa1284. 10.1093/nar/gkaa1284 PubMed 33511418
