PurposeNanoluciferase (NanoLuc) targeted to the extracellular surface of the cell membrane for bioluminescence resonance energy transfer (BRET)-based measurement of ligand binding to unmodified receptors
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 164784 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

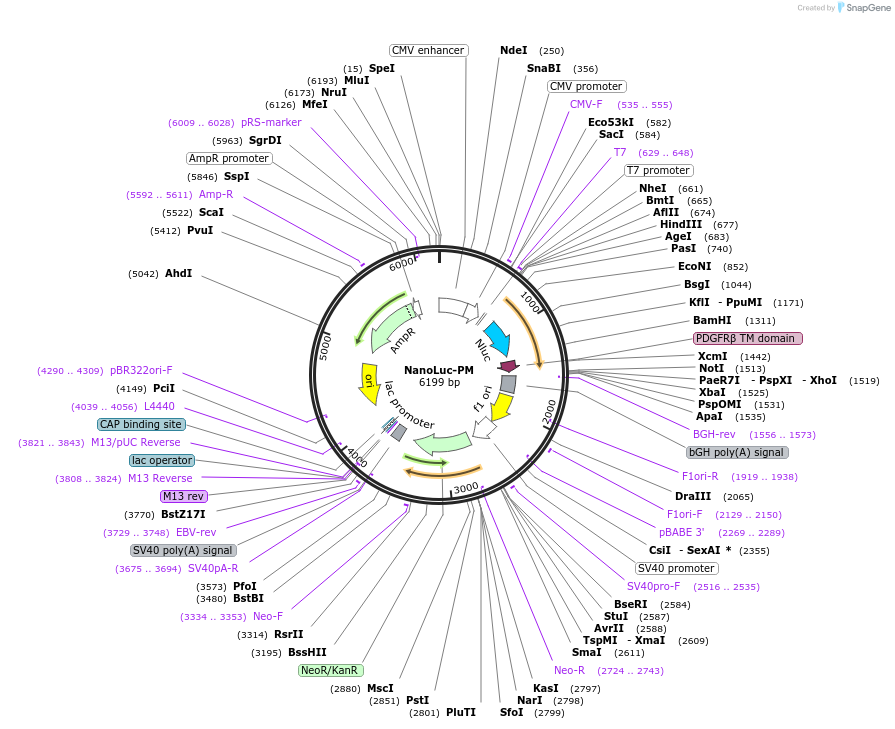

Backbone
-
Vector backbonepcDNA3.1
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5380
- Total vector size (bp) 6196
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNanoluciferase fused with the transmembrane domain of the platelet-derived growth factor receptor beta
-
Alt nameNanoLuc
-
Alt namePDGFRB
-
SpeciesH. sapiens (human); Oplophorus gracilirostris
-
Insert Size (bp)816
-
Entrez GenePDGFRB (a.k.a. CD140B, IBGC4, IMF1, JTK12, KOGS, PDGFR, PDGFR-1, PDGFR1, PENTT)
- Promoter CMV
-
Tag
/ Fusion Protein
- NanoLuc (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII, AgeI (not destroyed)
- 3′ cloning site NotI, XhoI (not destroyed)
- 5′ sequencing primer CMV_fwd_primer
- 3′ sequencing primer BGH_rev_primer (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
NanoLuc-PM was a gift from Laszlo Hunyady (Addgene plasmid # 164784 ; http://n2t.net/addgene:164784 ; RRID:Addgene_164784) -
For your References section:
A general method for quantifying ligand binding to unmodified receptors using Gaussia luciferase. Toth AD, Garger D, Prokop S, Soltesz-Katona E, Varnai P, Balla A, Turu G, Hunyady L. J Biol Chem. 2021 Feb 2:100366. doi: 10.1016/j.jbc.2021.100366. 10.1016/j.jbc.2021.100366 PubMed 33545176
