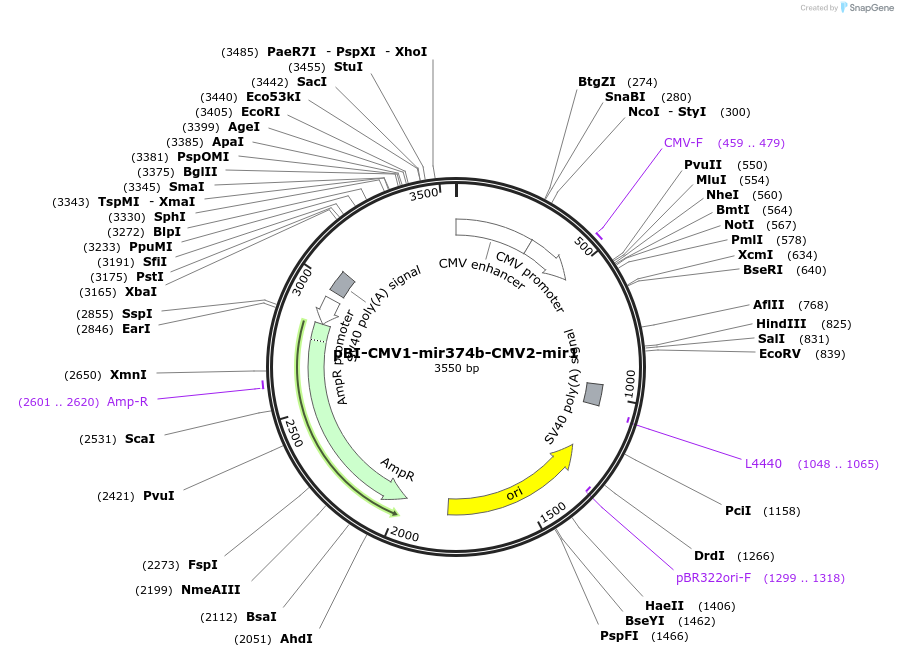

pBI-CMV1-mir374b-CMV2-mir1
(Plasmid #164672)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164672 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBI-CMV1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3114
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    miR-374b
  • Species
    H. sapiens (human)
  • Entrez Gene
    MIR374B (a.k.a. MIRN374B, mir-374b)
  • Promoter CMV

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CAATGGGAGTTTGTTTTGGC
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    miR-1-1
  • Species
    H. sapiens (human)
  • Entrez Gene
    MIR1-1 (a.k.a. MIRN1-1, hsa-mir-1-1, miRNA1-1, mir-1-1)
  • Promoter CMV

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer TGGGCTATGAACTAATGACC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBI-CMV1-mir374b-CMV2-mir1 was a gift from David Bartel (Addgene plasmid # 164672 ; http://n2t.net/addgene:164672 ; RRID:Addgene_164672)

  • For your References section:

    MicroRNA Clustering Assists Processing of Suboptimal MicroRNA Hairpins through the Action of the ERH Protein. Fang W, Bartel DP. Mol Cell. 2020 Apr 16;78(2):289-302.e6. doi: 10.1016/j.molcel.2020.01.026. 10.1016/j.molcel.2020.01.026 PubMed 32302541
