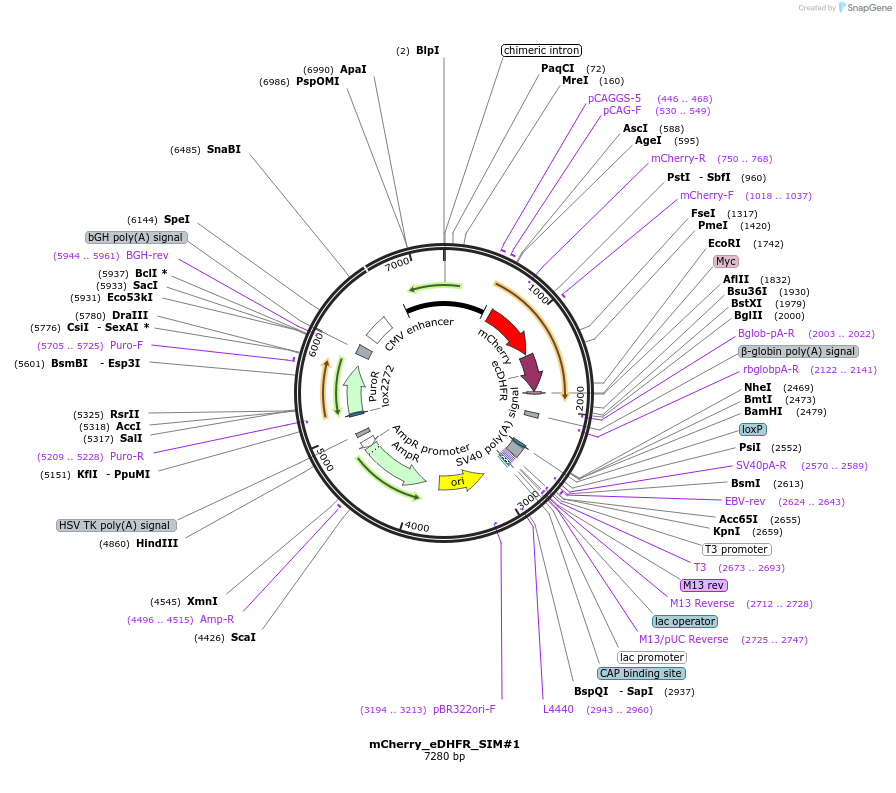

mCherry_eDHFR_SIM#1
(Plasmid #164646)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164646 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    RMCE
  • Backbone size w/o insert (bp) 7208
  • Total vector size (bp) 7284
  • Vector type
    Mammalian Expression, Cre/Lox
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    SIM
  • Alt name
    sumo interacting motif
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    74
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AflII (not destroyed)
  • 3′ cloning site NotI (destroyed during cloning)
  • 5′ sequencing primer gtcaacatcaagttggacatcac
  • 3′ sequencing primer ATTAGCCAGAAGTCAGATGCTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

SIM from Michael Rosen Lab

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mCherry_eDHFR_SIM#1 was a gift from Michael Lampson & Huaiying Zhang (Addgene plasmid # 164646 ; http://n2t.net/addgene:164646 ; RRID:Addgene_164646)

  • For your References section:

    Nuclear body phase separation drives telomere clustering in ALT cancer cells. Zhang H, Zhao R, Tones J, Liu M, Dilley RL, Chenoweth DM, Greenberg RA, Lampson MA. Mol Biol Cell. 2020 Aug 15;31(18):2048-2056. doi: 10.1091/mbc.E19-10-0589. Epub 2020 Jun 24. 10.1091/mbc.E19-10-0589 PubMed 32579423
