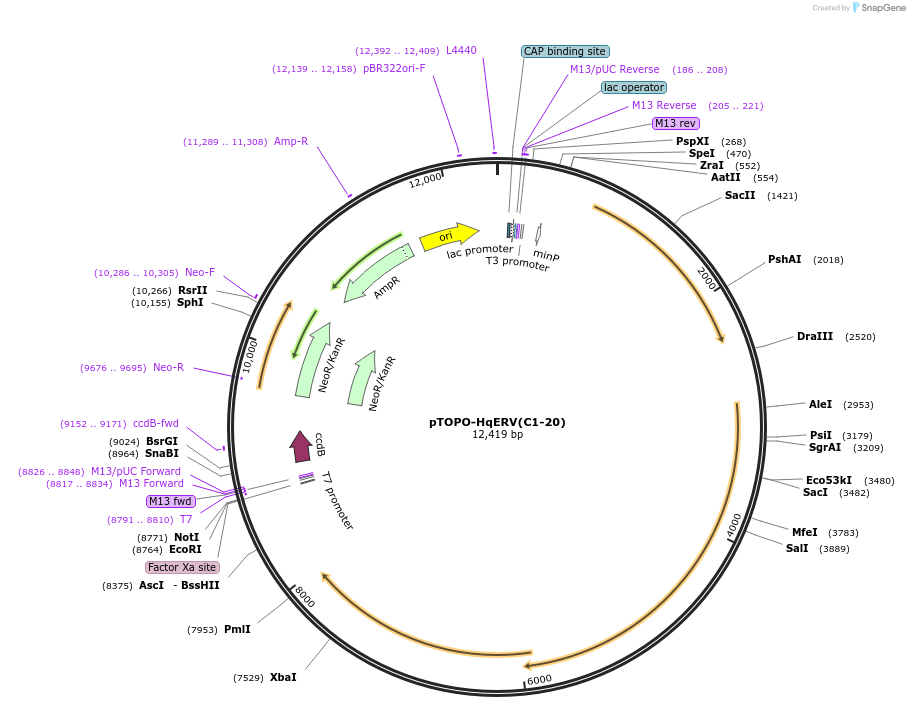

pTOPO-HqERV(C1-20)
(Plasmid
#164090)
-
Purposetransfection of Hq-ERV with light-inducible promoter
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 164090 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCR-XL-2-TOPO
-
Backbone manufacturerInvitrogen/ThermoFisher
- Backbone size w/o insert (bp) 3923
-
Vector typeeukaryotic expression vector
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHq-ERV
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)8491
-
Mutation5'-LTR replaced with light-regulatable C1-20 promoter
- Promoter light-activatable C1-20
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SpeI (destroyed during cloning)
- 3′ cloning site SpeI (not destroyed)
- 5′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byLaura Motta-Mena/Kevin Gardner at UTSW Dallas. The C1-20 insert was derived from the pcDNA-C120-empty plasmid cited in https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3944926/.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The C1-20 insert was derived from the pcDNA-C120-empty plasmid (Motta-Mena and Gardner) and introduced into pTOPO-HqERV (Addgene plasmid #164088) to generate the current plasmid, pTOPO-HqERV(C1-20).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTOPO-HqERV(C1-20) was a gift from Maik Hintze (Addgene plasmid # 164090 ; http://n2t.net/addgene:164090 ; RRID:Addgene_164090) -
For your References section:
Alopecia in Harlequin mutant mice is associated with reduced AIF protein levels and expression of retroviral elements. Hintze M, Griesing S, Michels M, Blanck B, Wischhof L, Hartmann D, Bano D, Franz T. Mamm Genome. 2020 Dec 26. pii: 10.1007/s00335-020-09854-0. doi: 10.1007/s00335-020-09854-0. 10.1007/s00335-020-09854-0 PubMed 33367954
