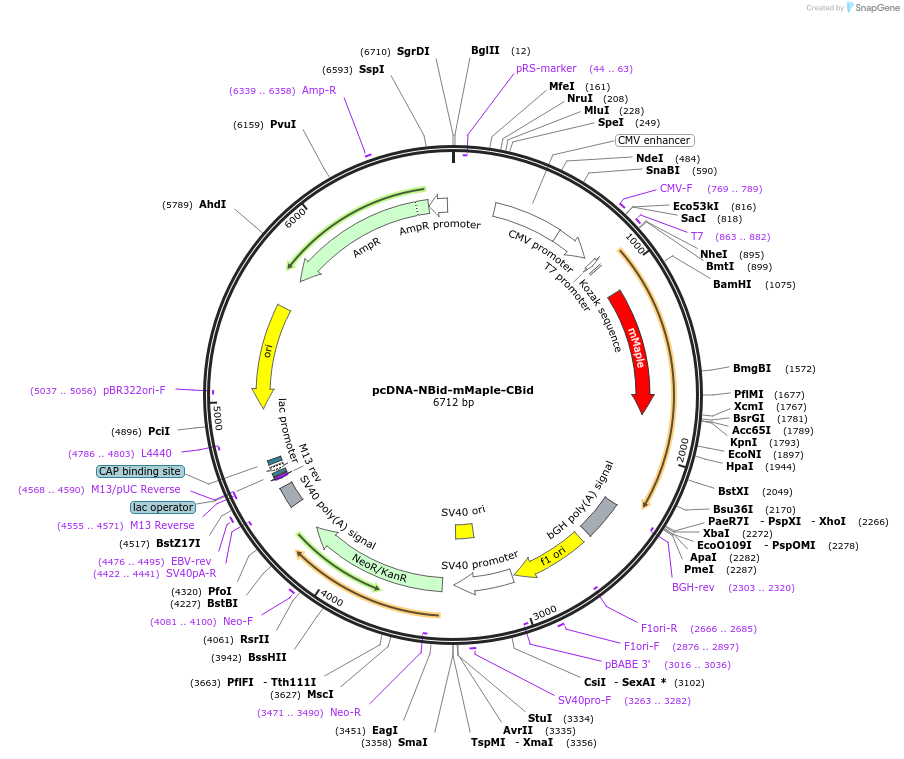

pcDNA-NBid-mMaple-CBid
(Plasmid #164049)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164049 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1+
  • Backbone size w/o insert (bp) 5350
  • Total vector size (bp) 6709
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NBid-mMaple-CBid
  • Species
    Synthetic
  • Insert Size (bp)
    1359
  • Promoter CMV promotor
  • Tag / Fusion Protein
    • kozak sequence (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CG CAAATGGGCG GTAGGCGTG
  • 3′ sequencing primer CCTCGACTG TGCCTTCTA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA-NBid-mMaple-CBid was a gift from Robert Campbell (Addgene plasmid # 164049 ; http://n2t.net/addgene:164049 ; RRID:Addgene_164049)

  • For your References section:

    Photocleavable proteins that undergo fast and efficient dissociation. Lu X, Wen Y, Zhang S, Zhang W, Chen Y, Shen Y, Lemieux MJ, Campbell RE. Chem Sci. 2021 May 31;12(28):9658-9672. doi: 10.1039/d1sc01059j. eCollection 2021 Jul 21. 10.1039/d1sc01059j PubMed 34349937
