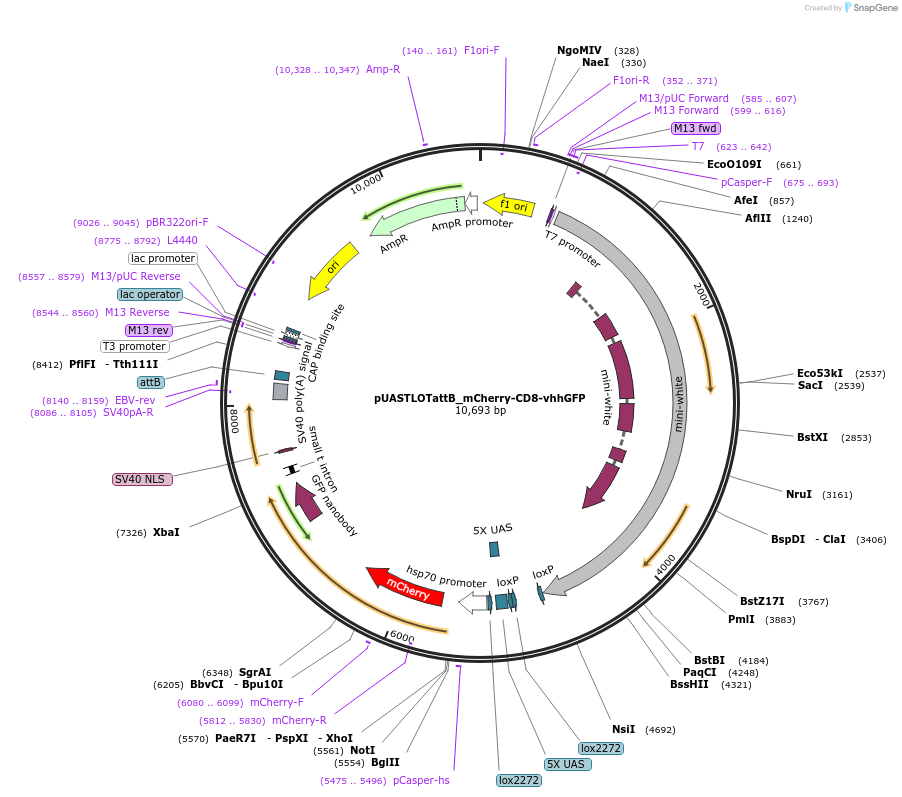

pUASTLOTattB_mCherry-CD8-vhhGFP
(Plasmid #163930)

• Purpose: Expression of Morphotrap-intracellular (Grab-FP-intracellular) under control of UAS or LOP enhancer
• Depositing Lab: Markus Affolter
• Publication: Harmansa et al Elife. 2017 Apr 11;6. doi: 10.7554/eLife.22549.

Backbone

• Vector backbone: pUASTLOTattB
• Backbone manufacturer: Kanca, O. et.al., Raeppli: a whole-tissue labeling tool for live imaging of Drosophila development. Development (2014)
• Backbone size w/o insert (bp): 8900
• Total vector size (bp): 10700
• Vector type: Insect Expression, Cre/Lox

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: Fusion of vhhGPF4 nanobody (intracellular) with mouse CD8 transmembrane protein and mCherry fluorophor
• Alt name: Morphotrap-intracellular
• Species: M. musculus (mouse), D. melanogaster (fly)
• Tag / Fusion Protein:
  • mCherry (N terminal on insert)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry

Depositor Comments

pUASTLOTattB vector:
Kanca, O., Caussinus, E., Denes, A. S., Percival-Smith, A. & Affolter, M. Raeppli: a
whole-tissue labeling tool for live imaging of Drosophila development.
Development 141, 472–480 (2014).

vhhGFP4 plasmid:
Saerens D, Pellis M, Loris R, Pardon E, Dumoulin M, Matagne A, Wyns L, Muyldermans S, Conrath K
J Mol Biol. 2005 Sep 23; 352(3):597-607.

mCD8 plasmid:
Lee, T. & Luo, L. Mosaic analysis with a repressible cell marker for studies of
gene function in neuronal morphogenesis. Neuron 22, 451–461 (1999).

mCherry: Clonetech
