pAC8_GWs-Lox (VE5589)
(Plasmid
#163769)
-
PurposeTransfer vector for gene expression to generate recombinant baculoviruses by homologous recombination. Contains expression cassette under the pH promoter.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 163769 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBAcPAK8
-
Backbone manufacturerClontech
-
Modifications to backboneThe pAC8_ GWs-Lox (VE5589) is a derivative of pBAcPAK8 (Clontech) for generation of recombinant baculoviruses by homologous recombination. It contains an expression cassette composed of one baculovirus late promoter (PH). Insertion of DNA sequence is typically performed by Gateway® LR reaction.
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameno insert
- Promoter PH
-
Tag
/ Fusion Protein
- no tag
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer ACCATCTCGCAAATAAATAA (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAC8_GWs-Lox (VE5589) was a gift from Arnaud Poterszman (Addgene plasmid # 163769 ; http://n2t.net/addgene:163769 ; RRID:Addgene_163769) -
For your References section:
HR-Bac, a toolbox based on homologous recombination for expression, screening and production of multiprotein complexes using the baculovirus expression system. Kolesnikova O, Zachayus A, Pichard S, Osz J, Rochel N, Rossolillo P, Kolb-Cheynel I, Troffer-Charlier N, Compe E, Bensaude O, Berger I, Poterszman A. Sci Rep. 2022 Feb 7;12(1):2030. doi: 10.1038/s41598-021-04715-5. 10.1038/s41598-021-04715-5 PubMed 35132103

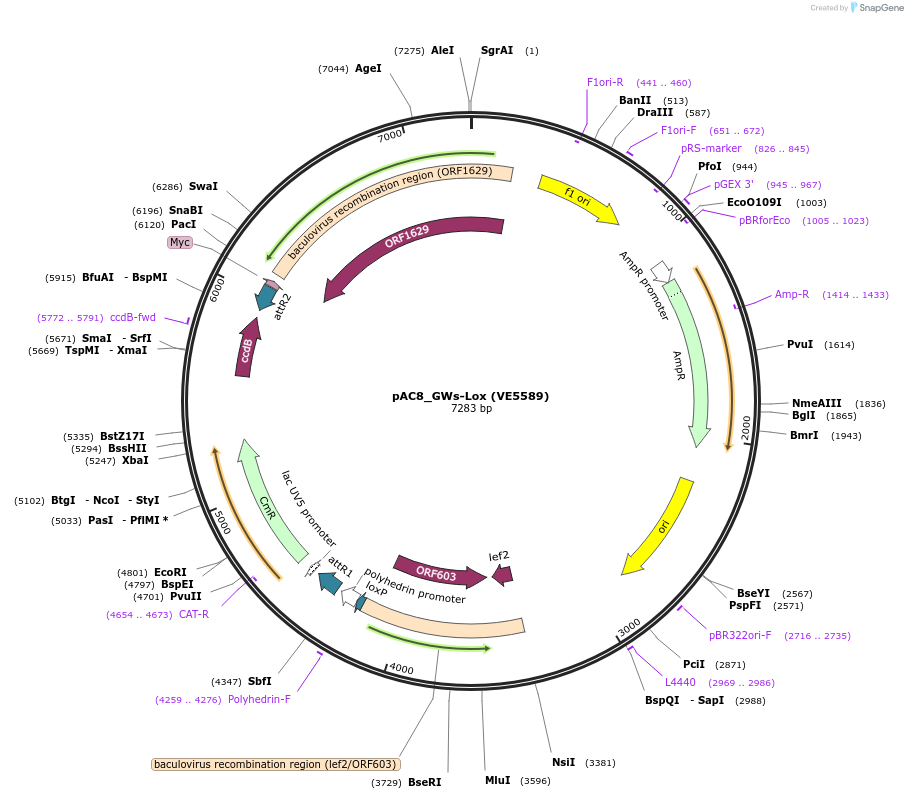

Map uploaded by the depositor.
