F9F17F-GFP
(Plasmid #163679)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 163679 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

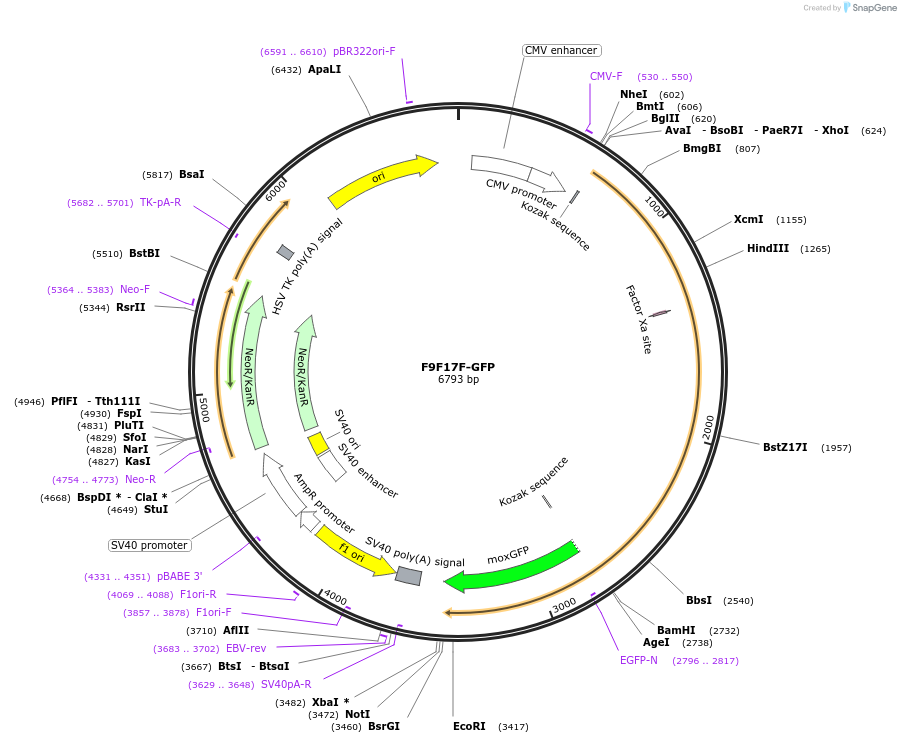

Backbone

  • Vector backbone
    pmoxGFP-N1
  • Backbone manufacturer
    E. Snapp (Addgene plasmid # 68070)
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 6794
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    transferrin receptor mutant
  • Alt name
    TFR
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2094
  • Mutation
    This chimera contains 9 amino acids from the cytosolic tail of TFR, 17 amino acids from the TMD of TFR and whole extracellular domain of TFR.
  • GenBank ID
    NM_001128148
  • Entrez Gene
    TFRC (a.k.a. CD71, IMD46, T9, TFR, TFR1, TR, TRFR, p90)
  • Tag / Fusion Protein
    • GFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV-F
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    F9F17F-GFP was a gift from Lei Lu (Addgene plasmid # 163679 ; http://n2t.net/addgene:163679 ; RRID:Addgene_163679)

  • For your References section:

    A quantitative study of the Golgi retention of glycosyltransferases. Sun X, Mahajan D, Chen B, Song Z, Lu L. J Cell Sci. 2021 Oct 15;134(20). pii: 272560. doi: 10.1242/jcs.258564. Epub 2021 Oct 21. 10.1242/jcs.258564 PubMed 34533190
