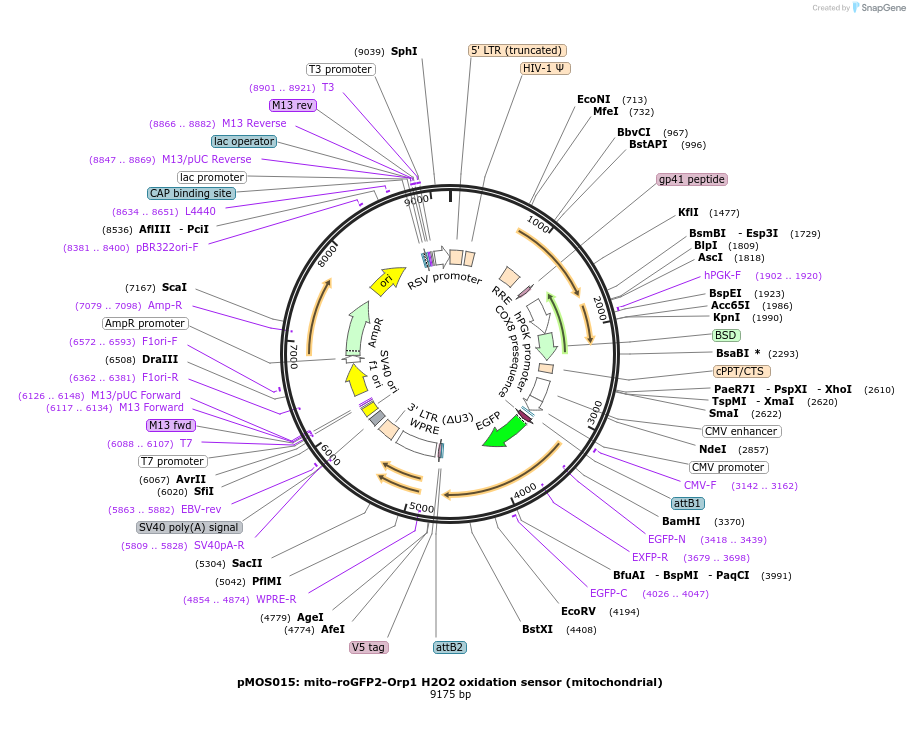

pMOS015: mito-roGFP2-Orp1 H2O2 oxidation sensor (mitochondrial)
(Plasmid #163059)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 163059 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pLX304
  • Backbone size w/o insert (bp) 9377
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mito-roGFP2-Orp1
  • Species
    Synthetic
  • Insert Size (bp)
    1410
  • Promoter CMV

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Tobias Dick

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please see PMID: 19755417 for original reporter gene characterization.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMOS015: mito-roGFP2-Orp1 H2O2 oxidation sensor (mitochondrial) was a gift from Adam Cohen (Addgene plasmid # 163059 ; http://n2t.net/addgene:163059 ; RRID:Addgene_163059)
  • For your References section:

    Multiplexed Optical Sensors in Arrayed Islands of Cells for multimodal recordings of cellular physiology. Werley CA, Boccardo S, Rigamonti A, Hansson EM, Cohen AE. Nat Commun. 2020 Aug 4;11(1):3881. doi: 10.1038/s41467-020-17607-5. 10.1038/s41467-020-17607-5 PubMed 32753572
