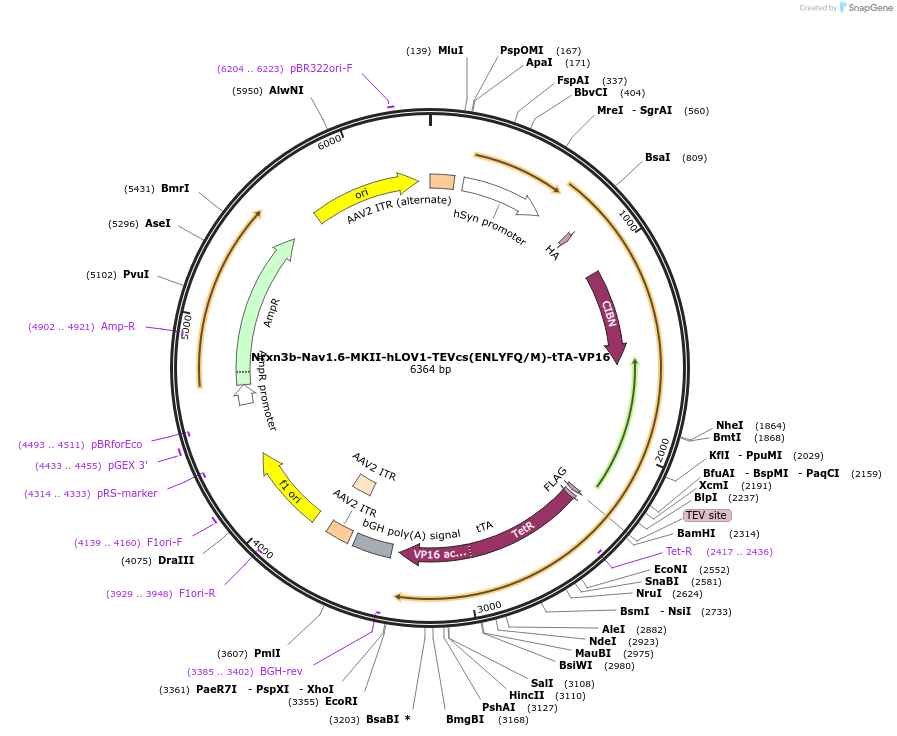

Nrxn3b-Nav1.6-MKII-hLOV1-TEVcs(ENLYFQ/M)-tTA-VP16
(Plasmid #163029)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 163029 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    AAV
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Nrxn3b-MKII-hLOV1-TEVcs-tTA
  • Species
    Synthetic
  • Promoter Synapsin

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GCGACCATCTGCGCTGCGGCGCC
  • 3′ sequencing primer CAACAGATGGCTGGCAACTAGAAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Nrxn3b-Nav1.6-MKII-hLOV1-TEVcs(ENLYFQ/M)-tTA-VP16 was a gift from Alice Ting (Addgene plasmid # 163029 ; http://n2t.net/addgene:163029 ; RRID:Addgene_163029)

  • For your References section:

    A Molecular Calcium Integrator Reveals a Striatal Cell Type Driving Aversion. Kim CK, Sanchez MI, Hoerbelt P, Fenno LE, Malenka RC, Deisseroth K, Ting AY. Cell. 2020 Dec 23;183(7):2003-2019.e16. doi: 10.1016/j.cell.2020.11.015. Epub 2020 Dec 11. 10.1016/j.cell.2020.11.015 PubMed 33308478
