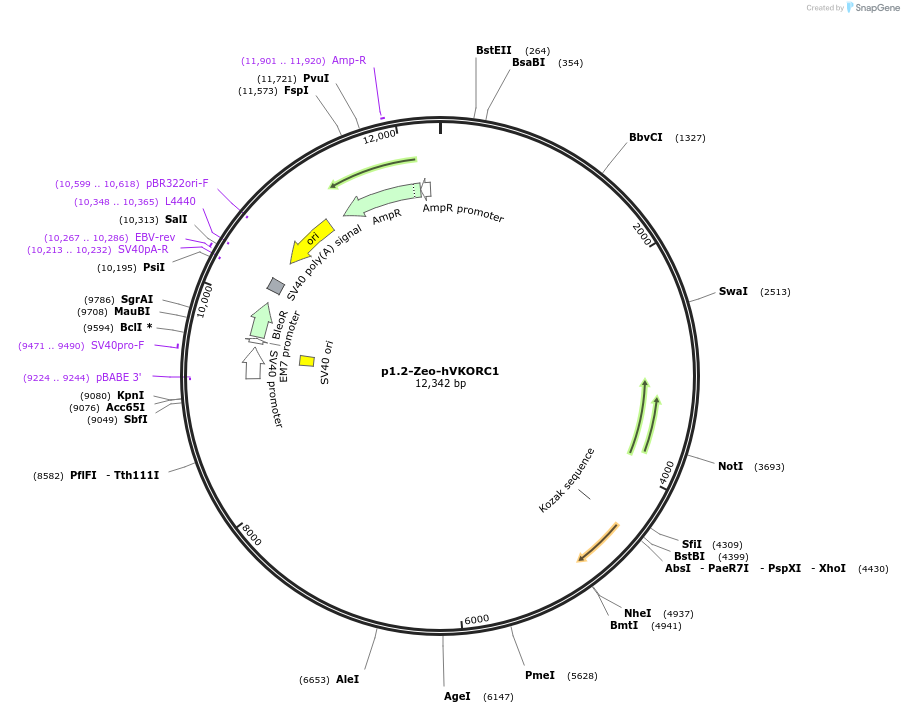

p1.2-Zeo-hVKORC1
(Plasmid #162776)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 162776 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    p1.1
  • Backbone manufacturer
    LMBT, LTD
  • Backbone size w/o insert (bp) 11914
  • Modifications to backbone
    The region containing the EMCV IRES and the DHFR ORF from the p1.1 expression vector is removed. Antibiotic resistance genes and the SV40 promoter and terminator regions are added.
  • Vector type
    Mammalian Expression
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    VKORC1 vitamin K epoxide reductase complex subunit 1
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_024006.6 Gene ID: 79001
  • Entrez Gene
    VKORC1 (a.k.a. EDTP308, MST134, MST576, VKCFD2, VKOR)
  • Promoter CHO EEF1A1 (Translation Elongation Factor 1 Alpha 1)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AbsI (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer SQ-5CH6-F GCCGCTGCTTCCTGTGAC
  • 3′ sequencing primer SQ-3CH1-R ACAAACAGTTCTGAGACCG
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    The ORF sequence of human VKORC1 was amplified from the pCMV6-XL4/ NM_024006.4 plasmid (sc112318, Origene, USA)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p1.2-Zeo-hVKORC1 was a gift from Ivan Vorobiev (Addgene plasmid # 162776 ; http://n2t.net/addgene:162776 ; RRID:Addgene_162776)

  • For your References section:

    A Highly Productive CHO Cell Line Secreting Human Blood Clotting Factor IX. Kovnir SV, Orlova NA, Shakhparonov MI, Skryabin KG, Gabibov AG, Vorobiev II. Acta Naturae. 2018 Jan-Mar;10(1):51-65. PubMed 29713519
