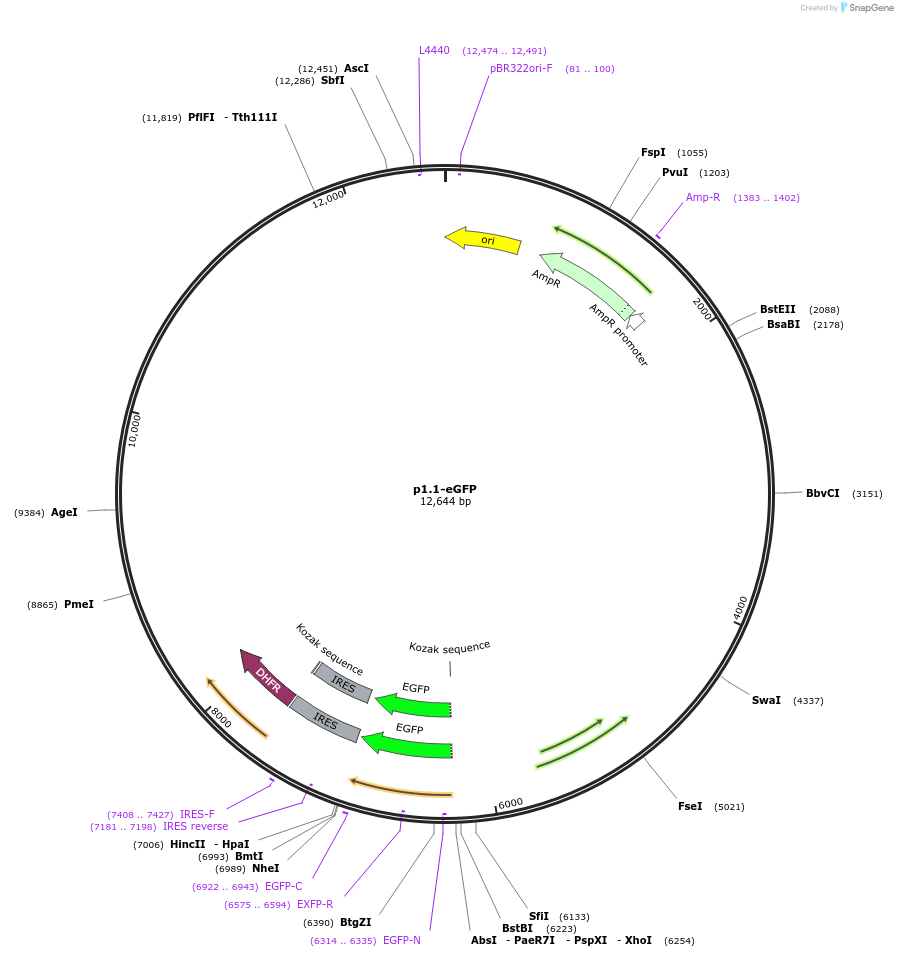

p1.1-eGFP
(Plasmid #162738)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 162738 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    p1.1
  • Backbone manufacturer
    LMBT, LTD
  • Backbone size w/o insert (bp) 11914
  • Total vector size (bp) 12628
  • Modifications to backbone
    AbsI-NheI restriction
  • Vector type
    Mammalian Expression
  • Selectable markers
    HT/MTX

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    enhanced green fluorescent protein
  • Alt name
    eGFP
  • Species
    Aequorea victoria
  • Insert Size (bp)
    735
  • Mutation
    consensus Kozak sequence (GCCGCCATGG) added before the ORF
  • GenBank ID
    AAB02576.1
  • Promoter CHO EEF1A1 (Translation Elongation Factor 1 Alpha 1)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AbsI (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer SQ-5CH6-F GCCGCTGCTTCCTGTGAC
  • 3′ sequencing primer IRESA-rev aggtttccgggccctcacattg
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    The eGFP ORF obtained by PCR with pEGFPN2 (Clontech) as a template

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p1.1-eGFP was a gift from Ivan Vorobiev (Addgene plasmid # 162738 ; http://n2t.net/addgene:162738 ; RRID:Addgene_162738)

  • For your References section:

    Improved elongation factor-1 alpha-based vectors for stable high-level expression of heterologous proteins in Chinese hamster ovary cells. Orlova NA, Kovnir SV, Hodak JA, Vorobiev II, Gabibov AG, Skryabin KG. BMC Biotechnol. 2014 Jun 14;14:56. doi: 10.1186/1472-6750-14-56. 10.1186/1472-6750-14-56 PubMed 24929670
