pL0-BvDODAα1
(Plasmid #162528)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 162528 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

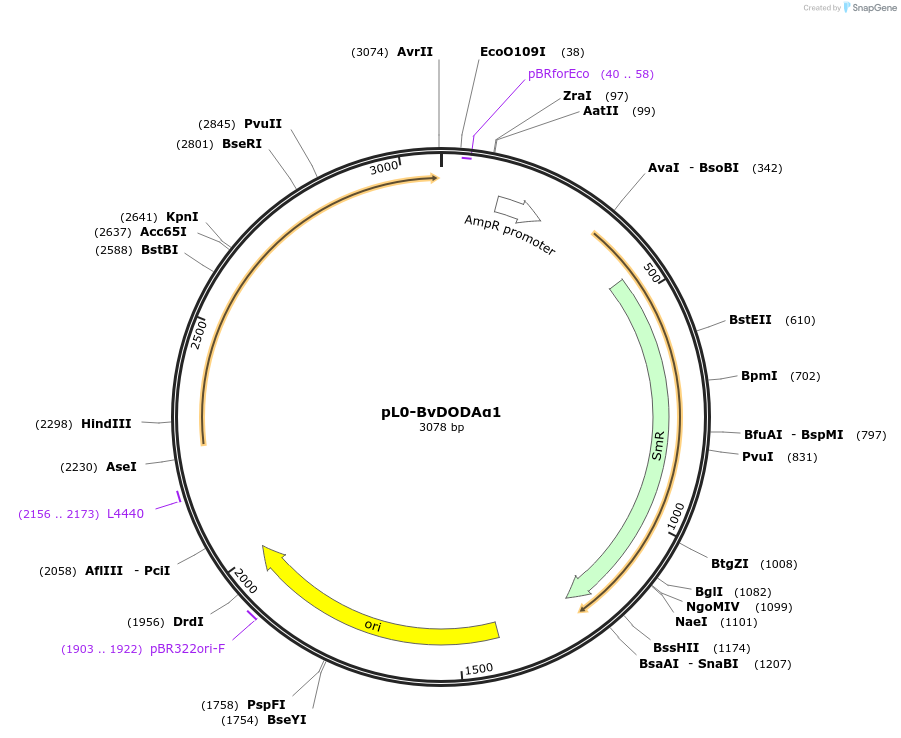

Backbone

  • Vector backbone
    pICH41308
  • Backbone manufacturer
    47998 (Sylvestre Marillonnet)
  • Backbone size w/o insert (bp) 2248
  • Total vector size (bp) 3076
  • Vector type
    Bacterial Expression ; pUC19-derived

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DODAα1
  • Alt name
    4,5-DOPA dioxygenase alpha 1
  • Species
    Beta vulgaris
  • Insert Size (bp)
    828
  • GenBank ID
    MH836616

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer MoClo_lv0_F0015: CGTTATCCCCTGATTCTGTGGATAAC
  • 3′ sequencing primer MoClo_lv0_R0016: GTCTCATGAGCGGATACATATTTGAATG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pL0-BvDODAα1 was a gift from Sam Brockington (Addgene plasmid # 162528 ; http://n2t.net/addgene:162528 ; RRID:Addgene_162528)

  • For your References section:

    MycoRed: Betalain pigments enable in vivo real-time visualisation of arbuscular mycorrhizal colonisation. Timoneda A, Yunusov T, Quan C, Gavrin A, Brockington SF, Schornack S. PLoS Biol. 2021 Jul 14;19(7):e3001326. doi: 10.1371/journal.pbio.3001326. 10.1371/journal.pbio.3001326 PubMed 34260583
