pJH127
(Plasmid
#162483)
-
PurposeSEC plasmid containing LG1 homology arms and myo-2p::TIR1::F2A::BFP::AID*::NLS::tbb-2 3'UTR, for expression of TIR1 and nuclear BFP reporter in C. elegans.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 162483 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepDD356
- Total vector size (bp) 15350
-
Vector typeWorm Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemyo-2p::TIR1::F2A::AID*::NLS::tbb-2 3'UTR
-
Tag
/ Fusion Protein
- myo-2p::TIR1::F2A::AID*::NLS::tbb-2 3'UTR
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2020.05.12.090217v1 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJH127 was a gift from Bob Goldstein (Addgene plasmid # 162483 ; http://n2t.net/addgene:162483 ; RRID:Addgene_162483) -
For your References section:
An expanded auxin-inducible degron toolkit for Caenorhabditis elegans. Ashley GE, Duong T, Levenson MT, Martinez MAQ, Johnson LC, Hibshman JD, Saeger HN, Palmisano NJ, Doonan R, Martinez-Mendez R, Davidson BR, Zhang W, Ragle JM, Medwig-Kinney TN, Sirota SS, Goldstein B, Matus DQ, Dickinson DJ, Reiner DJ, Ward JD. Genetics. 2021 Mar 31;217(3). pii: 6104563. doi: 10.1093/genetics/iyab006. 10.1093/genetics/iyab006 PubMed 33677541

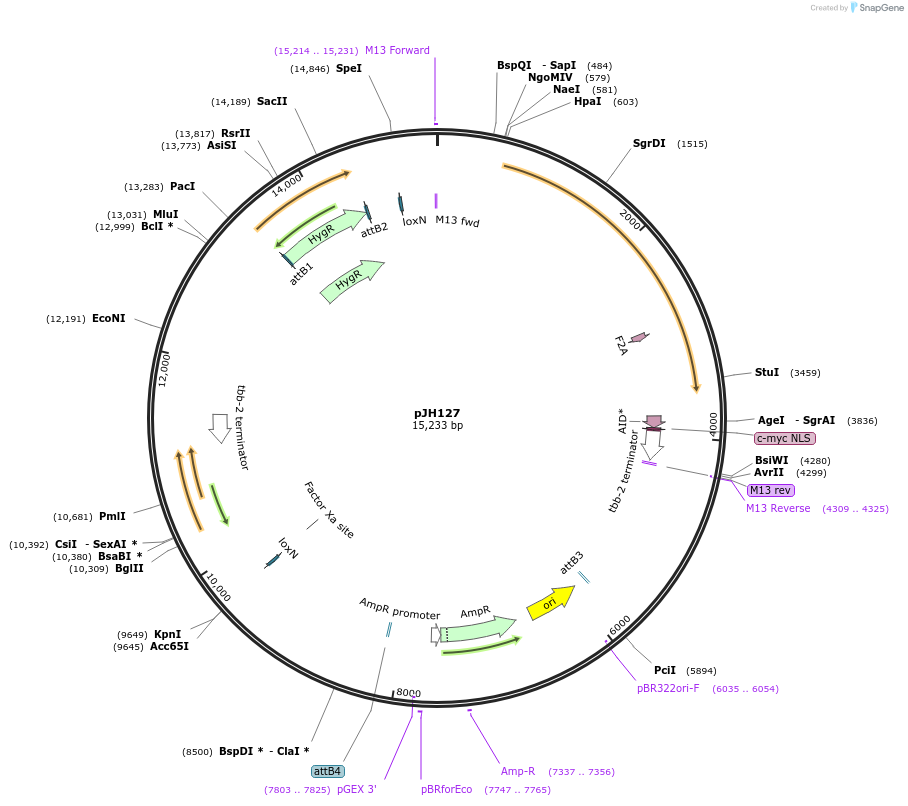

Map uploaded by the depositor.
