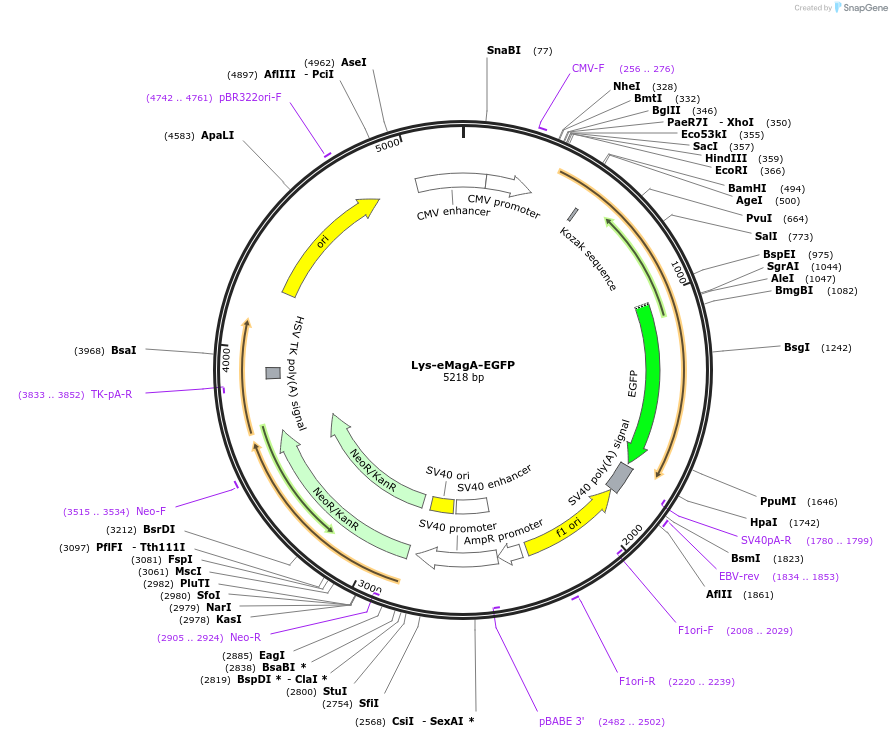

Lys-eMagA-EGFP
(Plasmid #162246)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 162246 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEYFP-Mitotrap (Addgene #46942)
  • Backbone size w/o insert (bp) 3850
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    p18-eMagA-EGFP
  • Species
    Synthetic
  • Insert Size (bp)
    1368

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (unknown if destroyed)
  • 3′ cloning site HpaI (unknown if destroyed)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2020.08.28.272807 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Lys-eMagA-EGFP was a gift from Pietro De Camilli (Addgene plasmid # 162246 ; http://n2t.net/addgene:162246 ; RRID:Addgene_162246)

  • For your References section:

    Optimized Vivid-derived Magnets photodimerizers for subcellular optogenetics in mammalian cells. Benedetti L, Marvin JS, Falahati H, Guillen-Samander A, Looger LL, De Camilli P. Elife. 2020 Nov 11;9. pii: 63230. doi: 10.7554/eLife.63230. 10.7554/eLife.63230 PubMed 33174843
