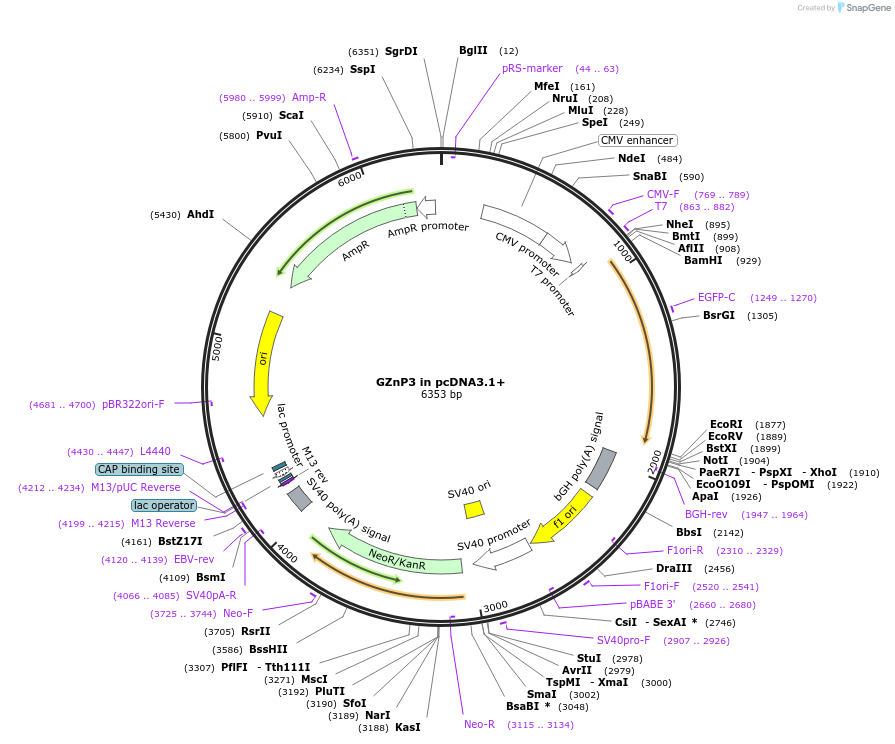

GZnP3 in pcDNA3.1+
(Plasmid #161738)

• Purpose: Cytosolic fluorescent reporter for Zn²⁺ (Kd = 1.3 nM, ex/em = 488 nm/515 nm)
• Depositing Lab: Yan Qin
• Publication: Minckley et al Nat Commun. 2019 Oct 22;10(1):4806. doi: 10.1038/s41467-019-12761-x.

Backbone

• Vector backbone: pcDNA3.1+
• Backbone manufacturer: Invitrogen
• Backbone size w/o insert (bp): 5411
• Total vector size (bp): 6353
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: GZnP3
• Alt name: Green Zn²⁺ Probe 3
• Species: Synthetic
• Insert Size (bp): 942
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: CMV-F
• 3′ sequencing primer: BGH-R

Resource Information

• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
