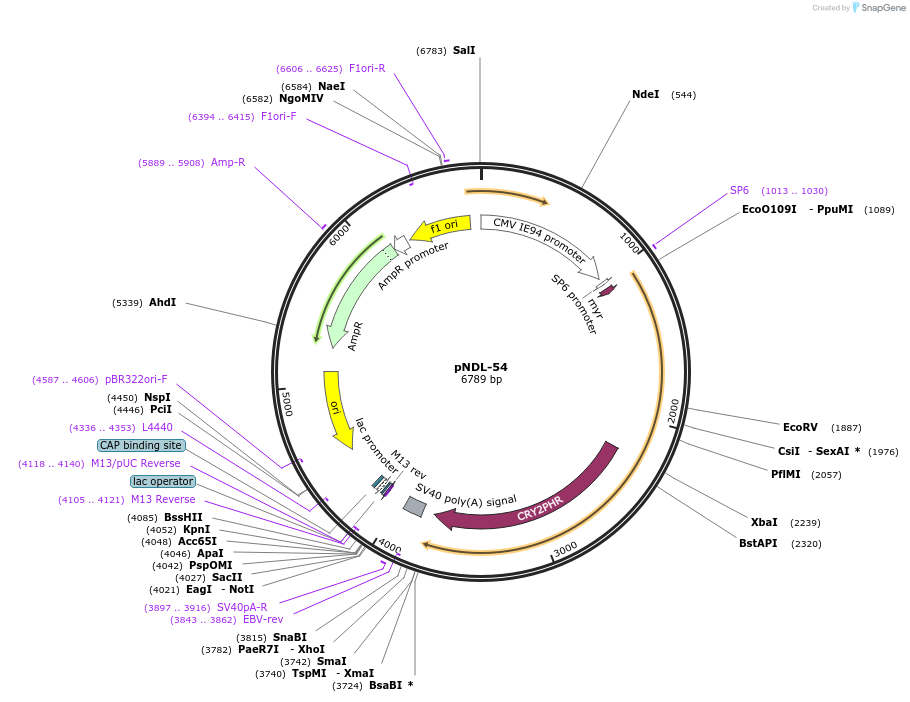

pNDL-54
(Plasmid #161715)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 161715 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCS2
  • Vector type
    In vitro transcription

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Myr-acvr1b-Cry2
  • Species
    D. rerio (zebrafish)
  • Entrez Gene
    acvr1ba (a.k.a. acvr1b, alk4, axis, taram-a, tarama, wu:fb75f01)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2024.04.11.588875 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNDL-54 was a gift from Adam Cohen (Addgene plasmid # 161715 ; http://n2t.net/addgene:161715 ; RRID:Addgene_161715)

  • For your References section:

    Optogenetic control of Nodal signaling patterns. McNamara HM, Jia BZ, Guyer A, Parot VJ, Dobbs C, Schier AF, Cohen AE, Lord ND. bioRxiv [Preprint]. 2024 Apr 12:2024.04.11.588875. doi: 10.1101/2024.04.11.588875. 10.1101/2024.04.11.588875 PubMed 38645239
