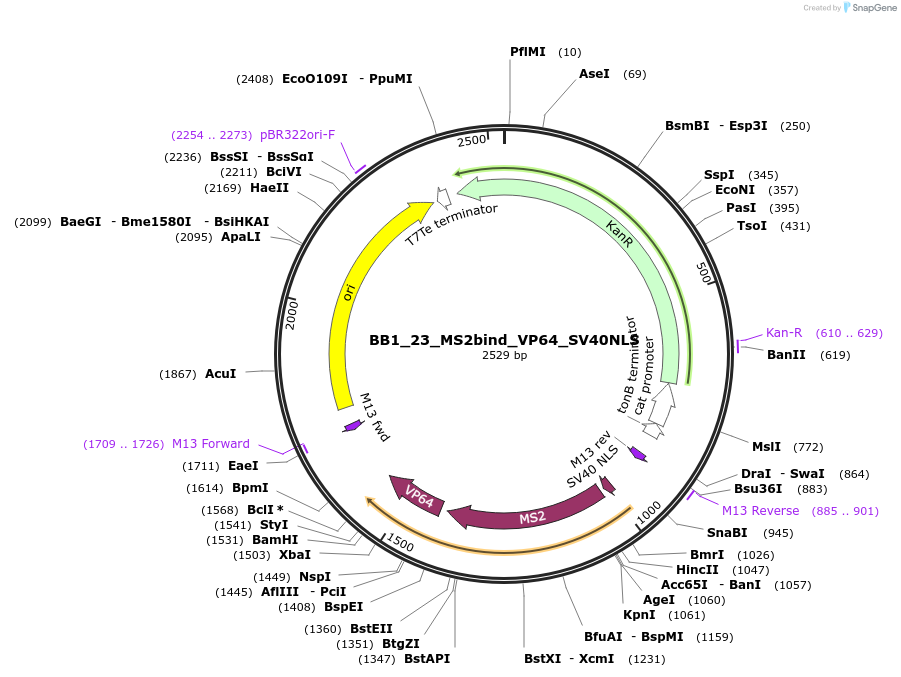

BB1_23_MS2bind_VP64_SV40NLS
(Plasmid #161479)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 161479 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    BB1_L_23_syn_BsaI
  • Backbone size w/o insert (bp) 2000
  • Total vector size (bp) 2529
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MS2 binding protein + VP64 activation domain
  • Alt name
    MS2 - VP64

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer CAGGAAACAGCTATGAC
  • 3′ sequencing primer GTAAAACGACGGCCAGTT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    BB1_23_MS2bind_VP64_SV40NLS was a gift from Brigitte Gasser & Diethard Mattanovich (Addgene plasmid # 161479 ; http://n2t.net/addgene:161479 ; RRID:Addgene_161479)

  • For your References section:

    Fine-Tuning of Transcription in Pichia pastoris Using dCas9 and RNA Scaffolds. Baumschabl M, Prielhofer R, Mattanovich D, Steiger MG. ACS Synth Biol. 2020 Dec 18;9(12):3202-3209. doi: 10.1021/acssynbio.0c00214. Epub 2020 Nov 12. 10.1021/acssynbio.0c00214 PubMed 33180466
