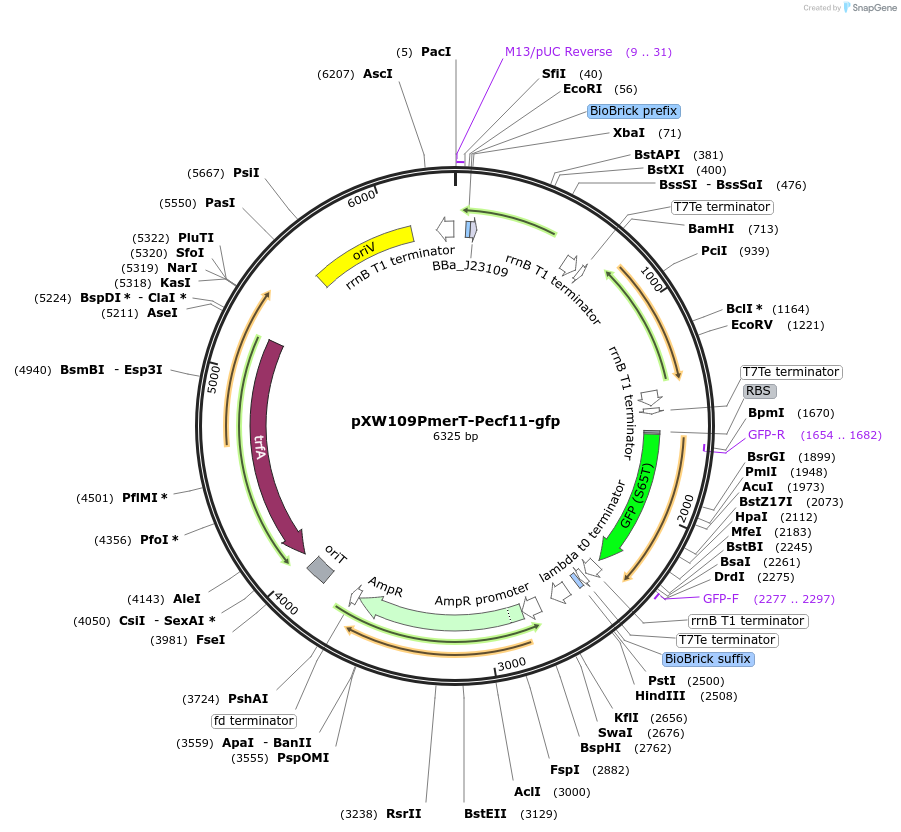

pXW109PmerT-Pecf11-gfp
(Plasmid #160822)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160822 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSEVA121
  • Backbone size w/o insert (bp) 3922
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    PJ23109-32merR-t-PmerT-33ecf11-Pecf11-30gfp-t
  • Species
    Synthetic
  • Insert Size (bp)
    2403
  • Promoter PJ23109, PmerT, Pecf11

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer AGGGCGGCGGATTTGTCC
  • 3′ sequencing primer GCGGCAACCGAGCGTTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pXW109PmerT-Pecf11-gfp was a gift from Baojun Wang (Addgene plasmid # 160822 ; http://n2t.net/addgene:160822 ; RRID:Addgene_160822)

  • For your References section:

    Synthetic protein-binding DNA sponge as a tool to tune gene expression and mitigate protein toxicity. Wan X, Pinto F, Yu L, Wang B. Nat Commun. 2020 Nov 24;11(1):5961. doi: 10.1038/s41467-020-19552-9. 10.1038/s41467-020-19552-9 PubMed 33235249
