Addgene

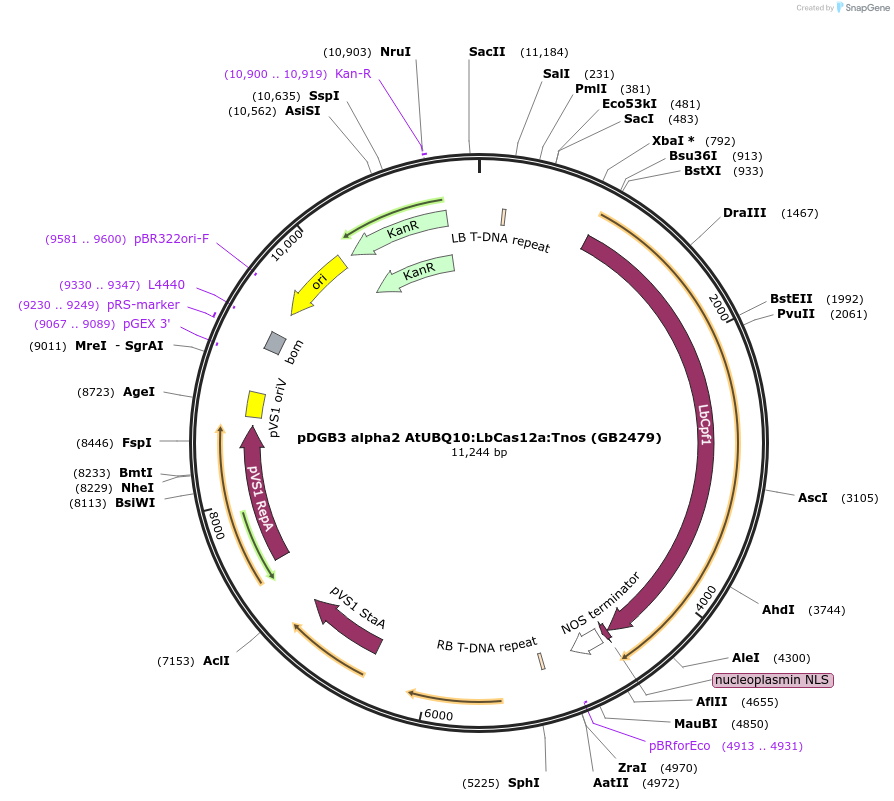

pDGB3 alpha2 AtUBQ10:LbCas12a:Tnos (GB2479)
(Plasmid #160629)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160629 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pDGB3_alpha1
  • Backbone manufacturer
    self-made; derived from pCambia1302 generated at the Cambia Institute
  • Vector type
    CRISPR, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    AtUBQ10-:LbCpf1(Cas12a):Tnos
  • Species
    Lachnospiraceae
  • Insert Size (bp)
    4878
  • Mutation
    BsaI and BsmBI sites removed
  • Promoter UBQ10

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)
  • 5′ sequencing primer GGTGGCAGGATATATTGTGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Compatible with GoldenBraid; insert can be released with BsmBI

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDGB3 alpha2 AtUBQ10:LbCas12a:Tnos (GB2479) was a gift from Diego Orzaez (Addgene plasmid # 160629 ; http://n2t.net/addgene:160629 ; RRID:Addgene_160629)
