pEGB2_alpha2 P35S:CUP2:GAL4AD:T35S (GB1039)
(Plasmid
#160607)
-
PurposeTU for the constitutive expression of the transcriptional activator protein CUP2 in C-terminal fusion with GAL4 activation domain (GAL4AD). Binds to specific DNA operator in the presence of copper ions and promotes transcription.
-
Depositing Lab
-
Publication
-

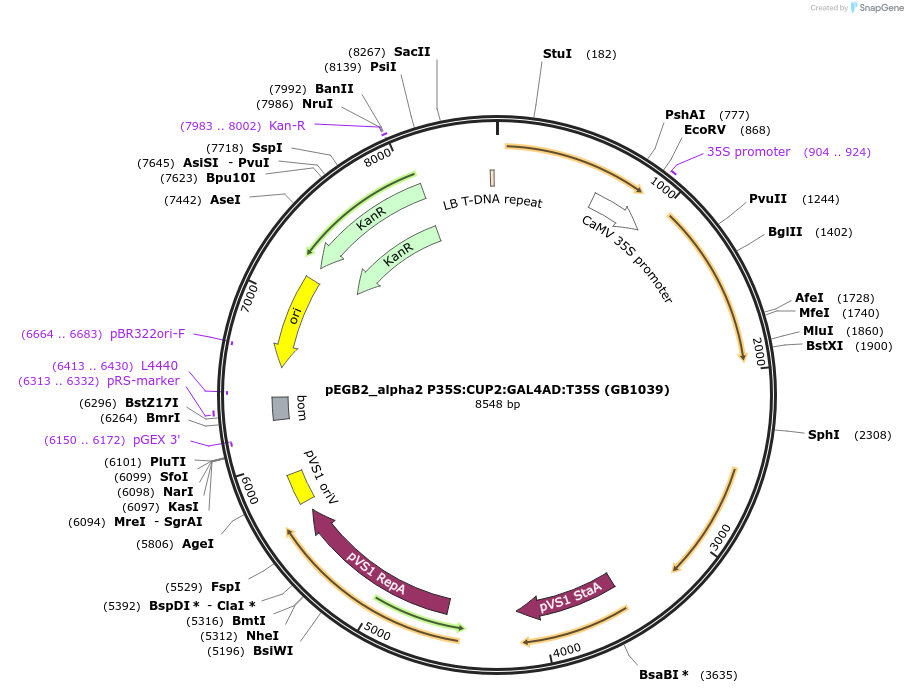

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 160607 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepDGB3_alpha2
-
Backbone manufacturerself-made; derived from pCambia1302 generated at the Cambia Institute
-
Vector typePlant Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCUP2Gal4AD
-
SpeciesSynthetic
-
Insert Size (bp)2191
-
MutationBsaI and BsmBI sites removed
- Promoter P35S
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
- 5′ sequencing primer GGTGGCAGGATATATTGTGG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Compatible with GoldenBraid; insert can be released with BsmBI
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEGB2_alpha2 P35S:CUP2:GAL4AD:T35S (GB1039) was a gift from Diego Orzaez (Addgene plasmid # 160607 ; http://n2t.net/addgene:160607 ; RRID:Addgene_160607)
