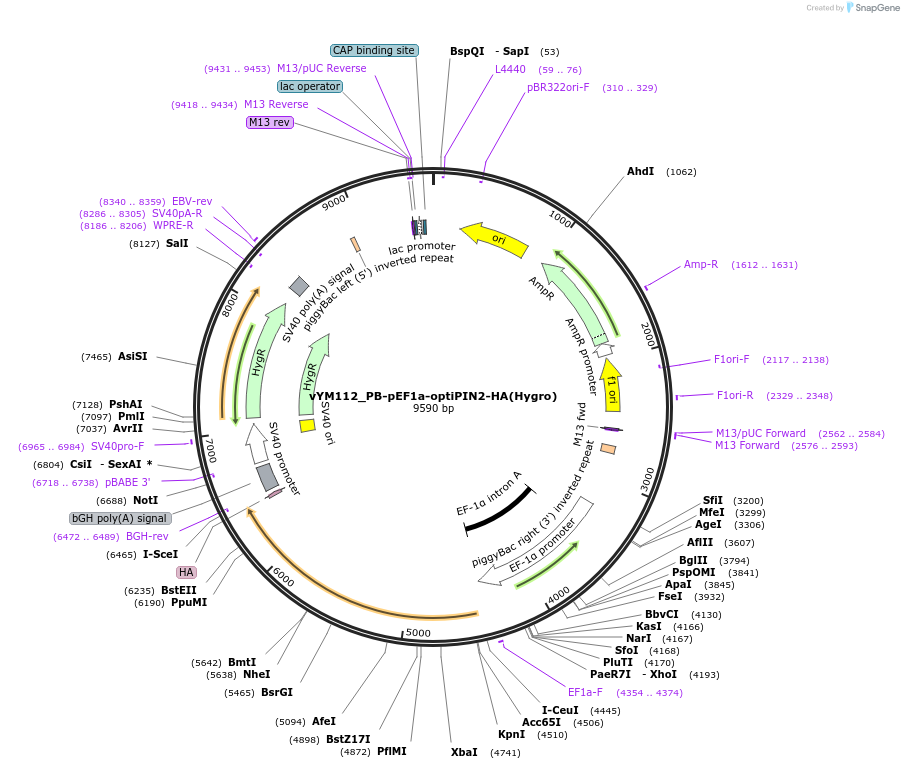

vYM112_PB-pEF1a-optiPIN2-HA(Hygro)
(Plasmid #160045)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160045 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    PiggyBac
  • Backbone manufacturer
    SYSTEM BIOSCIENCES
  • Vector type
    Mammalian Expression, Synthetic Biology
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PIN2
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    1941
  • Mutation
    codon optimized
  • GenBank ID
    AF086907.1
  • Promoter pEF1s
  • Tag / Fusion Protein
    • HA (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer taaggtagcgaaggtctgCGTAATG
  • 3′ sequencing primer agggataacagggtaatgaggtTTAtgcgtagtctggtacgtcgtacggatagccgc
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    vYM112_PB-pEF1a-optiPIN2-HA(Hygro) was a gift from Michael Elowitz (Addgene plasmid # 160045 ; http://n2t.net/addgene:160045 ; RRID:Addgene_160045)

  • For your References section:

    Synthetic mammalian signaling circuits for robust cell population control. Ma Y, Budde MW, Mayalu MN, Zhu J, Lu AC, Murray RM, Elowitz MB. Cell. 2022 Mar 17;185(6):967-979.e12. doi: 10.1016/j.cell.2022.01.026. Epub 2022 Mar 1. 10.1016/j.cell.2022.01.026 PubMed 35235768
