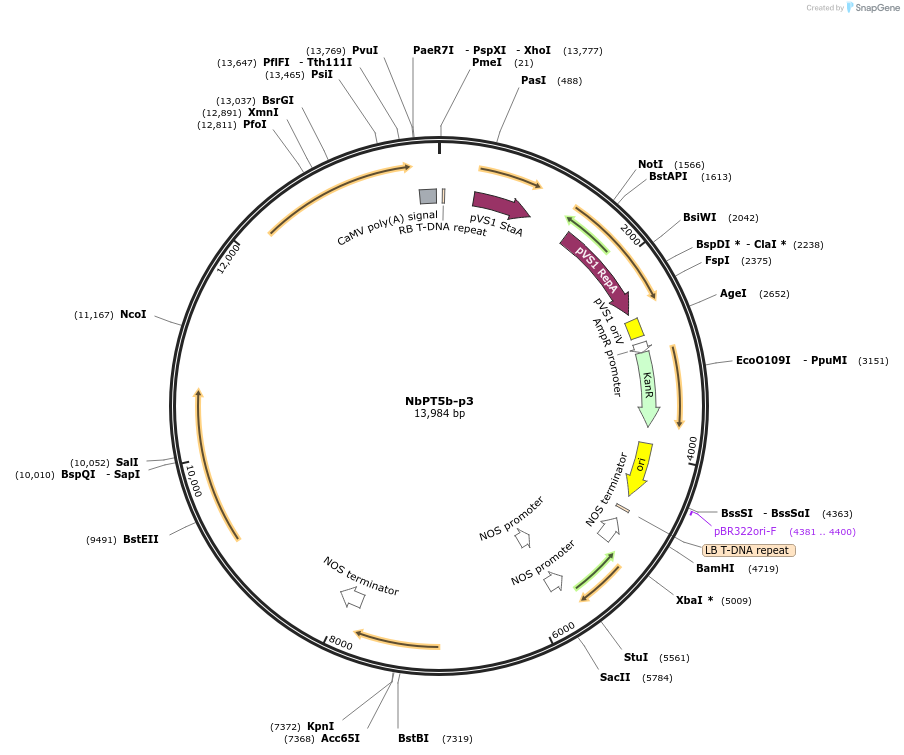

NbPT5b-p3
(Plasmid #160001)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160001 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pICSL4723
  • Backbone manufacturer
    86173 (Mark Youles)
  • Backbone size w/o insert (bp) 4901
  • Total vector size (bp) 14129
  • Vector type
    Plant Expression
  • Selectable markers
    Bar

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    Bar (reverse orientation)
  • Alt name
    Phosphinotricin N-acetyltransferase
  • Alt name
    Bialaphos resistance
  • Insert Size (bp)
    552
  • GenBank ID
  • Promoter Agrobacterium tumefaciens Nopaline synthase Promoter (AtuNos Pro)

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer Bar_F: ATGTCTCCTGAAAGAAGGCC
  • 3′ sequencing primer Bar_R: TCAAATCTCAGTCACAGGAAGA
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    DODAα1
  • Alt name
    4,5-DOPA dioxygenase alpha 1
  • Species
    Beta vulgaris
  • Insert Size (bp)
    828
  • GenBank ID
    MH836616
  • Promoter Nicotiana benthamiana Phosphate transporter 5b (NbPT5b Pro)

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer BvDODAα1_F: ATGAAAATGATGAATGGAGAAG
  • 3′ sequencing primer BvDODAα1_R: CTAGGCTGAAGTGAACTTGTAG
    • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    CYP76AD1
  • Alt name
    cytochrome P450 76AD1
  • Species
    Beta vulgaris
  • Insert Size (bp)
    1494
  • GenBank ID
    MH836617
  • Promoter Nicotiana benthamiana Phosphate transporter 5b (NbPT5b Pro)

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer BvCYP76AD1_F: ATGGATCATGCAACATTAGCA
  • 3′ sequencing primer BvCYP76AD1_R: TCAATACCTAGGTATTGGAATAAGTTTTAA
    • (Common Sequencing Primers)

Gene/Insert 4

  • Gene/Insert name
    cDOPA5GT
  • Alt name
    cyclo-DOPA 5-O-glucosyltransferase
  • Species
    Mirabilis jalapa
  • Insert Size (bp)
    1503
  • GenBank ID
    MH836618
  • Promoter Nicotiana benthamiana Phosphate transporter 5b (NbPT5b Pro)

Cloning Information for Gene/Insert 4

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer MjcDOPA5GT_F: ATGACCGCCATTAAAATG
  • 3′ sequencing primer MjcDOPA5GT_R: TTATTGAAGAGAAGGTTCCAAC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    NbPT5b-p3 was a gift from Sam Brockington (Addgene plasmid # 160001 ; http://n2t.net/addgene:160001 ; RRID:Addgene_160001)

  • For your References section:

    MycoRed: Betalain pigments enable in vivo real-time visualisation of arbuscular mycorrhizal colonisation. Timoneda A, Yunusov T, Quan C, Gavrin A, Brockington SF, Schornack S. PLoS Biol. 2021 Jul 14;19(7):e3001326. doi: 10.1371/journal.pbio.3001326. 10.1371/journal.pbio.3001326 PubMed 34260583
