SpyTag-RBD
(Plasmid
#159999)
-
PurposeExpresses SARS-CoV-2 RBD (340-538) (receptor-binding domain from Spike) with N-terminal SpyTag fusion in mammalian cells
-
Depositing Lab
-

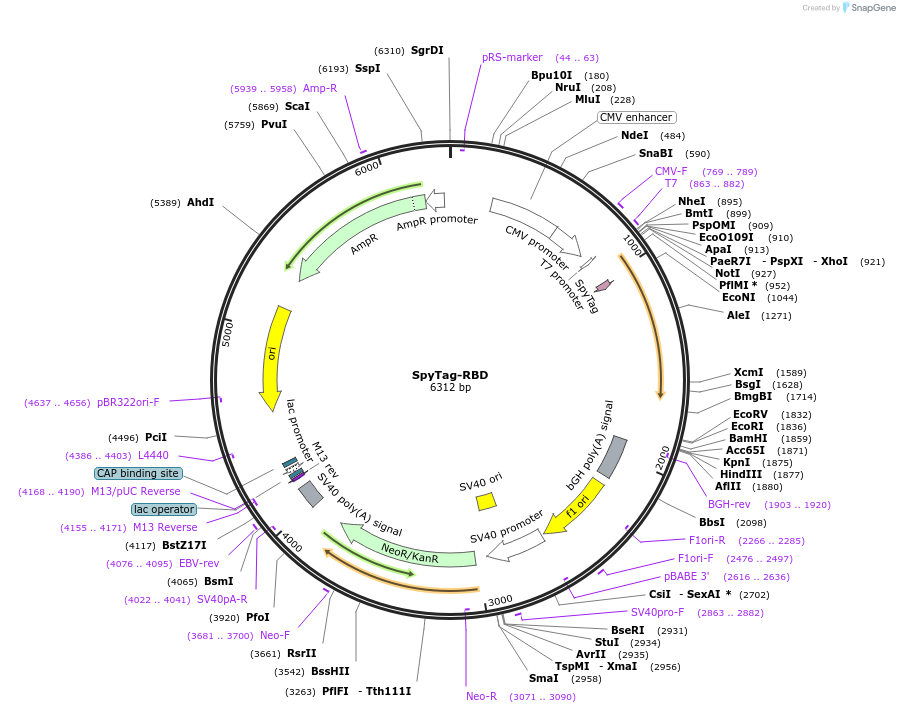

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 159999 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepcDNA3.1
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5428
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSpyTag-SARS-CoV-2 RBD (340-538)
-
SpeciesSARS-CoV-2
-
Insert Size (bp)744
-
Entrez GeneS (a.k.a. GU280_gp02, spike glycoprotein)
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-For
- 3′ sequencing primer BGH-Rev (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
SpyTag-RBD was a gift from Mark Howarth (Addgene plasmid # 159999 ; http://n2t.net/addgene:159999 ; RRID:Addgene_159999) -
For your References section:
Overcoming Symmetry Mismatch in Vaccine Nanoassembly through Spontaneous Amidation. Rahikainen R, Rijal P, Tan TK, Wu HJ, Andersson AC, Barrett JR, Bowden TA, Draper SJ, Townsend AR, Howarth M. Angew Chem Int Ed Engl. 2020 Sep 4. doi: 10.1002/anie.202009663. 10.1002/anie.202009663 PubMed 32886840
