874V=βTub-NLS-hSpCas9-T2A-GFP, Opie2-dsRed-SV40
(Plasmid
#159672)
-
PurposePlasmid supports Cas9 expression only in males, Opie2-dsRed tagged, and can be integrated with pBac or phC31.
-
Depositing Lab
-

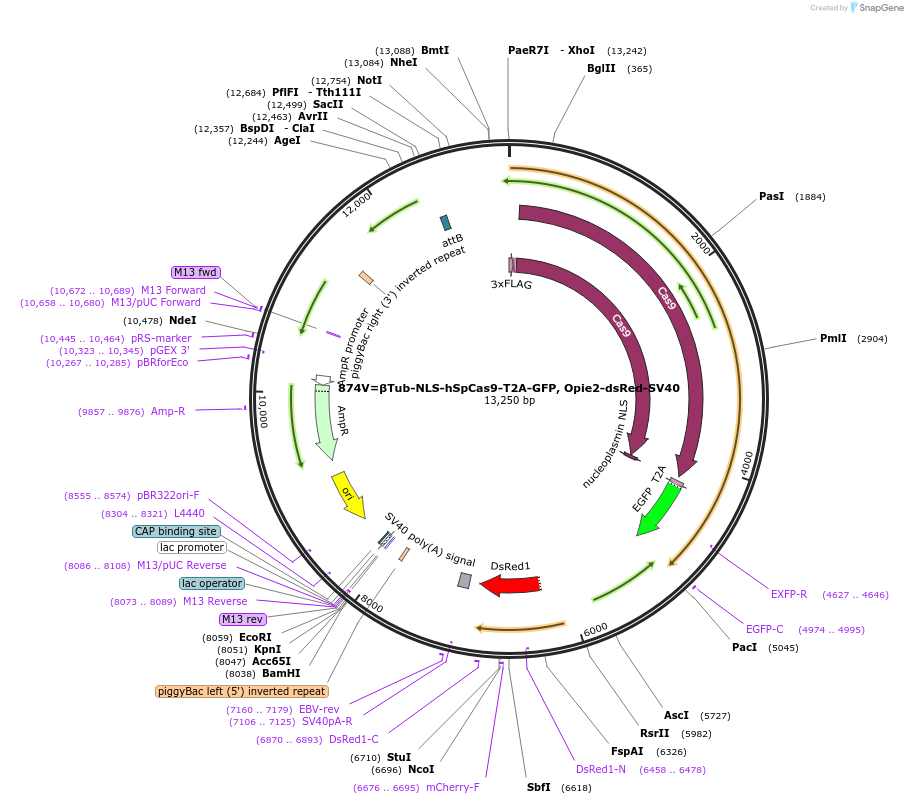

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 159672 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBac
- Backbone size w/o insert (bp) 8000
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameβTub-NLS-hSpCas9-T2A-GFP
-
SpeciesD. melanogaster (fly)
-
Insert Size (bp)6200
-
GenBank IDbetaTub85D (CG9359) promoter
-
Tag
/ Fusion Protein
- T2A-GFP (C terminal on insert)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
874V=βTub-NLS-hSpCas9-T2A-GFP, Opie2-dsRed-SV40 was a gift from Omar Akbari (Addgene plasmid # 159672 ; http://n2t.net/addgene:159672 ; RRID:Addgene_159672) -
For your References section:
A confinable home and rescue gene drive for population modification. Kandul NP, Liu J, Bennett JB, Marshall JM, Akbari OS. Elife. 2021 Mar 5;10. pii: 65939. doi: 10.7554/eLife.65939. 10.7554/eLife.65939 PubMed 33666174
