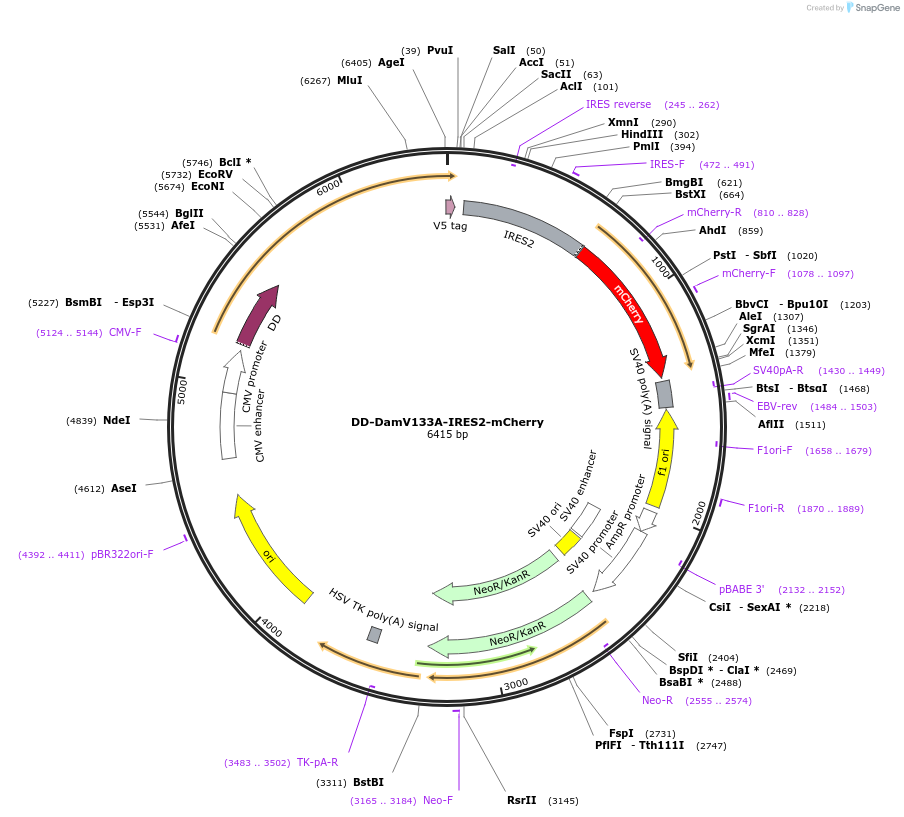

DD-DamV133A-IRES2-mCherry
(Plasmid
#159600)
-
PurposeShield-1 inducible transient mammalian expression of Dam alone for DamID controls, containing the V133A mutant of Dam.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 159600 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCMV
- Backbone size w/o insert (bp) 3800
- Total vector size (bp) 6415
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDD-DamV133A-IRES2-mCherry
-
SpeciesSynthetic
-
Insert Size (bp)2600
-
MutationDam V133A mutation
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F (CGCAAATGGGCGGTAGGCGTG)
- 3′ sequencing primer IRES-R (CCTCACATTGCCAAAAGACG) (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made bymodified from a gift from Bas van Steensel
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
dam-/dcm- strain should be used for downstream applications
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
DD-DamV133A-IRES2-mCherry was a gift from Aaron Streets (Addgene plasmid # 159600 ; http://n2t.net/addgene:159600 ; RRID:Addgene_159600) -
For your References section:
muDamID: A Microfluidic Approach for Joint Imaging and Sequencing of Protein-DNA Interactions in Single Cells. Altemose N, Maslan A, Rios-Martinez C, Lai A, White JA, Streets A. Cell Syst. 2020 Oct 21;11(4):354-366.e9. doi: 10.1016/j.cels.2020.08.015. Epub 2020 Sep 23. 10.1016/j.cels.2020.08.015 PubMed 33099405
