pL0-MtPT4Pro
(Plasmid #159414)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 159414 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

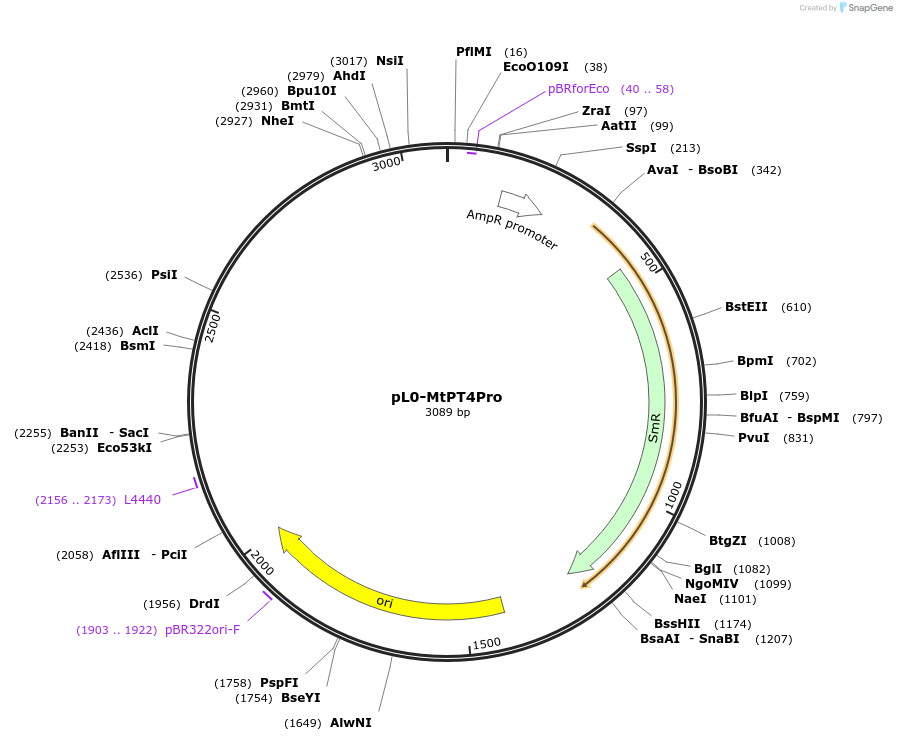

Backbone

  • Vector backbone
    pICH41295
  • Backbone manufacturer
    47997 (Sylvestre Marillonnet)
  • Backbone size w/o insert (bp) 2251
  • Total vector size (bp) 3087
  • Vector type
    Bacterial Expression ; pUC19-derived
  • Selectable markers
    LacZ alpha

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MtPT4 Promoter
  • Alt name
    Phosphate Transporter 4 Promoter
  • Species
    Medicago truncatula
  • Insert Size (bp)
    836

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer MoClo_lv0_F0015: CGTTATCCCCTGATTCTGTGGATAAC
  • 3′ sequencing primer MoClo_lv0_R0016: GTCTCATGAGCGGATACATATTTGAATG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pL0-MtPT4Pro was a gift from Sam Brockington (Addgene plasmid # 159414 ; http://n2t.net/addgene:159414 ; RRID:Addgene_159414)

  • For your References section:

    MycoRed: Betalain pigments enable in vivo real-time visualisation of arbuscular mycorrhizal colonisation. Timoneda A, Yunusov T, Quan C, Gavrin A, Brockington SF, Schornack S. PLoS Biol. 2021 Jul 14;19(7):e3001326. doi: 10.1371/journal.pbio.3001326. 10.1371/journal.pbio.3001326 PubMed 34260583
