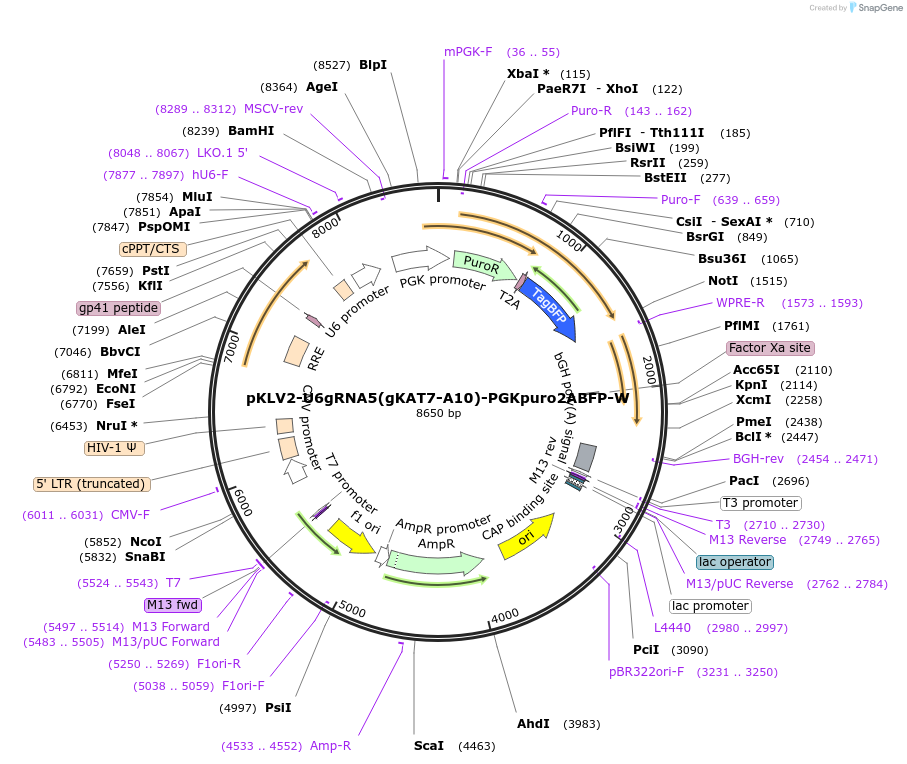

pKLV2-U6gRNA5(gKAT7-A10)-PGKpuro2ABFP-W
(Plasmid
#159288)
-
PurposeLentiviral vector expressing gRNA targeting KAT7 (gRNA ID. A10)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 159288 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepKLV2-U6gRNA5(BbsI)-PGKpuroBFP-W
- Backbone size w/o insert (bp) 8630
- Total vector size (bp) 8650
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameguide RNA targeting KAT7 (ID. A10)
-
gRNA/shRNA sequenceGCCGCTATGAGCTTGATACC
-
SpeciesH. sapiens (human)
-
GenBank IDNM_007067
-
Entrez GeneKAT7 (a.k.a. HBO1, HBOA, MYST2, ZC2HC7)
- Promoter human U6 promoter
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BbsI (destroyed during cloning)
- 3′ cloning site BbsI (destroyed during cloning)
- 5′ sequencing primer AGATAATTAGAATTAATTTGACTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2020.04.25.054049v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pKLV2-U6gRNA5(gKAT7-A10)-PGKpuro2ABFP-W was a gift from Kosuke Yusa (Addgene plasmid # 159288 ; http://n2t.net/addgene:159288 ; RRID:Addgene_159288) -
For your References section:
KAT7 is a genetic vulnerability of acute myeloid leukemias driven by MLL rearrangements. Au YZ, Gu M, De Braekeleer E, Gozdecka M, Aspris D, Tarumoto Y, Cooper J, Yu J, Ong SH, Chen X, Tzelepis K, Huntly BJP, Vassiliou G, Yusa K. Leukemia. 2021 Apr;35(4):1012-1022. doi: 10.1038/s41375-020-1001-z. Epub 2020 Aug 6. 10.1038/s41375-020-1001-z PubMed 32764680
