Depositing Lab
-
Publication
-

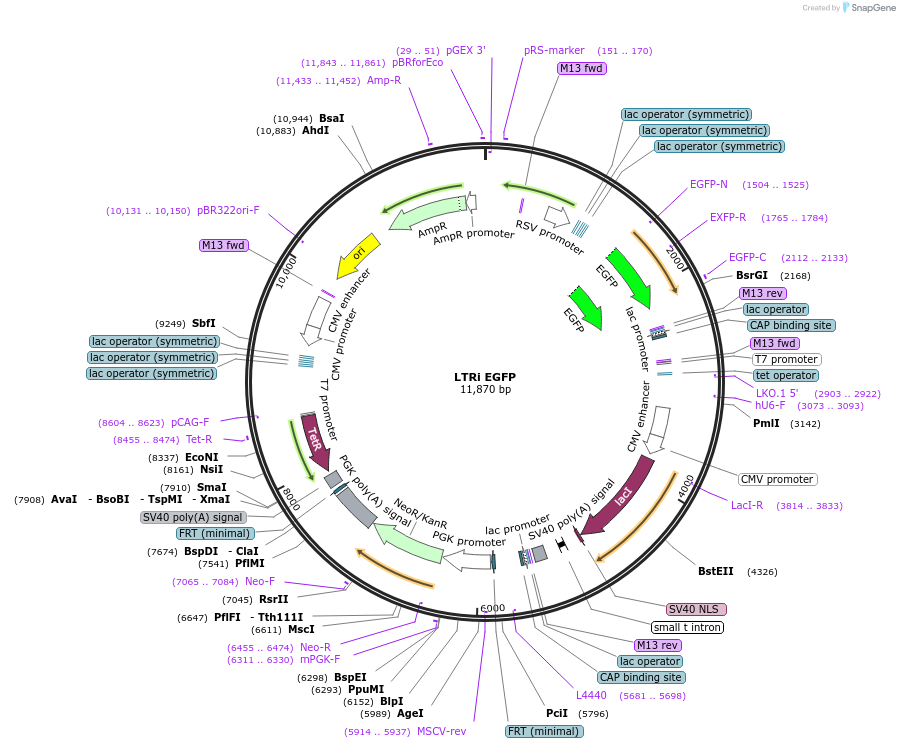

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 15914 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneLTRi (with neomycin R)
- Backbone size w/o insert (bp) 11100
-
Vector typeMammalian Expression, Synthetic Biology
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsStratagene SURE Very low copy: TLD recommends Megapreps
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameEGFP
-
Insert Size (bp)800
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer na (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
We engineered a tunable genetic switch called LTRi, which stands for Lac-Tet-RNAi. Gene expression is turned on by adding an inducer, isopropyl-β-thiogalactopyranoside (IPTG). LTRi-EGFP allows scientists to tune the level of EGFP. See article for details.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LTRi EGFP was a gift from James Collins (Addgene plasmid # 15914) -
For your References section:
A tunable genetic switch based on RNAi and repressor proteins for regulating gene expression in mammalian cells. Deans TL, Cantor CR, Collins JJ. Cell. 2007 Jul 27. 130(2):363-72. 10.1016/j.cell.2007.05.045 PubMed 17662949
