pcDNA3.1_ 2xFLAG-2xSTREP_BACH1
(Plasmid #159130)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 159130 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

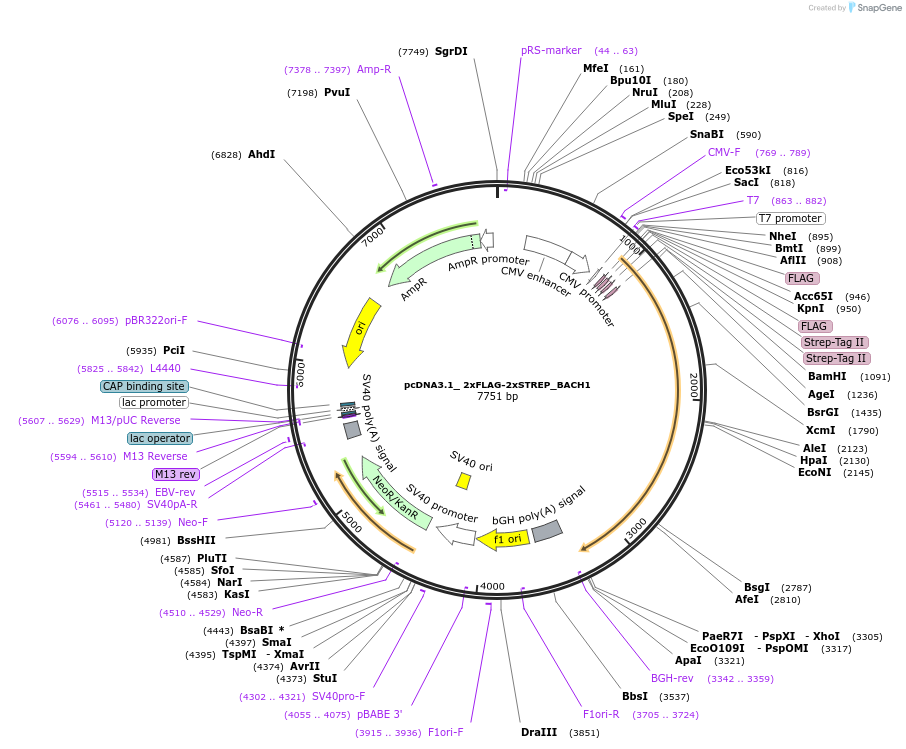

Backbone

  • Vector backbone
    PcDNA_3.1
  • Backbone size w/o insert (bp) 5500
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    BACH1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2209
  • GenBank ID
    NM_206866.3
  • Entrez Gene
    BACH1 (a.k.a. BACH-1, BTBD24)
  • Promoter CMV
  • Tag / Fusion Protein
    • 2X-FLAG _ 2X-STREP (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BAMHI (not destroyed)
  • 3′ cloning site XHOI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer BGHR
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1_ 2xFLAG-2xSTREP_BACH1 was a gift from Michele Pagano (Addgene plasmid # 159130 ; http://n2t.net/addgene:159130 ; RRID:Addgene_159130)

  • For your References section:

    Nrf2 Activation Promotes Lung Cancer Metastasis by Inhibiting the Degradation of Bach1. Lignitto L, LeBoeuf SE, Homer H, Jiang S, Askenazi M, Karakousi TR, Pass HI, Bhutkar AJ, Tsirigos A, Ueberheide B, Sayin VI, Papagiannakopoulos T, Pagano M. Cell. 2019 Jul 11;178(2):316-329.e18. doi: 10.1016/j.cell.2019.06.003. Epub 2019 Jun 27. 10.1016/j.cell.2019.06.003 PubMed 31257023
