LifeAct-14 (LA-14)
(Plasmid
#158750)
-
PurposeLentiviral plasmid for expression of shorter LifeAct variant (up till 14 amino acids) fused with carboxy terminus eGFP in mammalian cells.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 158750 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

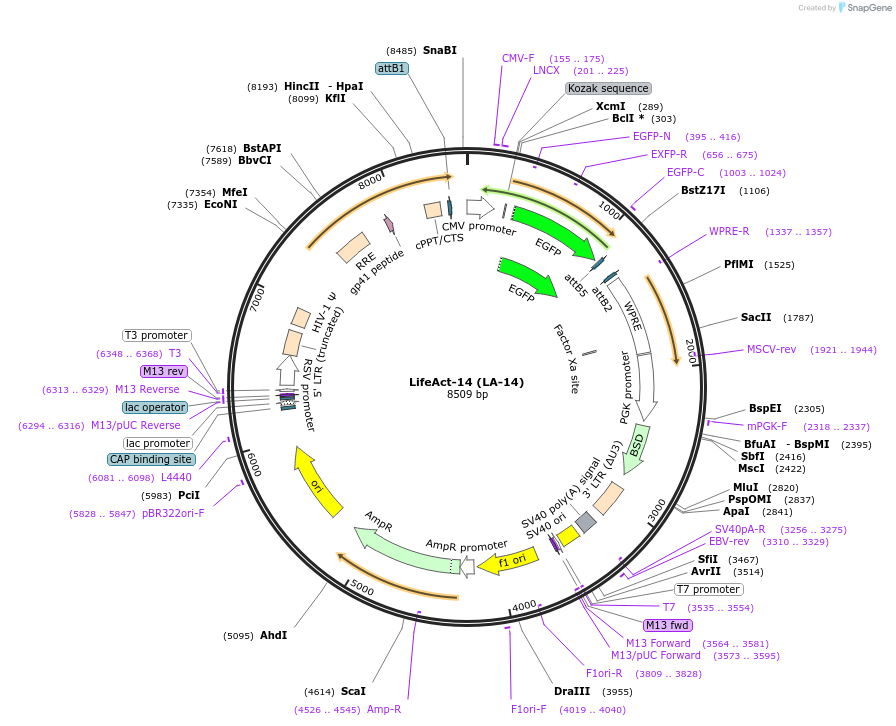

Backbone
-
Vector backbonepMuLE Dest BlastR
-
Backbone manufacturerPadilla-Rodriguez et al Nat Commun. 2018 Jul 30;9(1):2980. doi: 10.1038/s41467-018-05367-2.
- Backbone size w/o insert (bp) 8467
- Total vector size (bp) 8509
-
Modifications to backboneInserted LA-14 sequence in the Addgene plasmid # 84383
-
Vector typeMammalian Expression, Lentiviral
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Growth instructionsCan grow at 37C also
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameLifeAct-14
-
Alt nameLA-14
-
Alt nameShorter variant of actin binding LifeAct (amino acid 1-14)
-
Insert Size (bp)42
-
MutationDeletion mutation for last three amino acids from LifeAct sequence
- Promoter CMV immediate early
-
Tag
/ Fusion Protein
- eGFP (C terminal on insert)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV_fwd_primer
- 3′ sequencing primer MSCV_rev_primer (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byPerformed site-directed mutagenesis (SDM) to introduced deletion mutations for the terminal 3 amino acids in LifeAct sequence cloned in Addgene plasmid # 84383
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LifeAct-14 (LA-14) was a gift from Minhajuddin Sirajuddin (Addgene plasmid # 158750 ; http://n2t.net/addgene:158750 ; RRID:Addgene_158750) -
For your References section:
Structural insights into actin filament recognition by commonly used cellular actin markers. Kumari A, Kesarwani S, Javoor MG, Vinothkumar KR, Sirajuddin M. EMBO J. 2020 Jun 22:e104006. doi: 10.15252/embj.2019104006. 10.15252/embj.2019104006 PubMed 32567727
