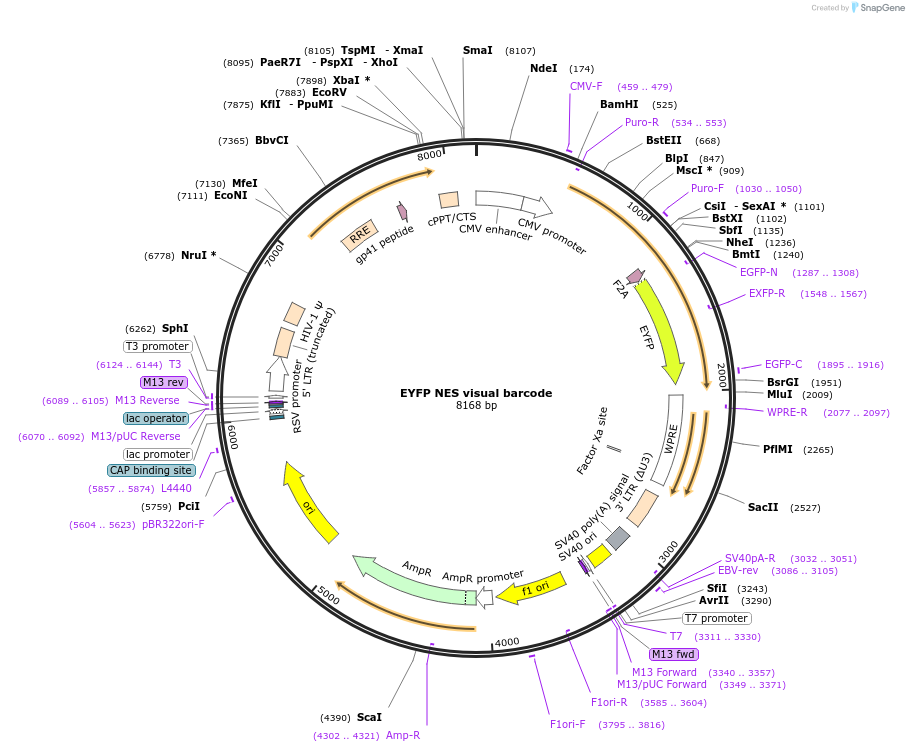

EYFP NES visual barcode
(Plasmid #158676)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 158676 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLKO.1
  • Backbone size w/o insert (bp) 7387
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    EYFP
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    765
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    pQC NLS YFP IX

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EYFP NES visual barcode was a gift from Ravid Straussman (Addgene plasmid # 158676 ; http://n2t.net/addgene:158676 ; RRID:Addgene_158676)

  • For your References section:

    Visual barcodes for clonal-multiplexing of live microscopy-based assays. Kaufman T, Nitzan E, Firestein N, Ginzberg MB, Iyengar S, Patel N, Ben-Hamo R, Porat Z, Hunter J, Hilfinger A, Rotter V, Kafri R, Straussman R. Nat Commun. 2022 May 18;13(1):2725. doi: 10.1038/s41467-022-30008-0. 10.1038/s41467-022-30008-0 PubMed 35585055
